As a leading gold producer in Africa, Ghana’s mineral exploration industry faces stringent requirements for efficiency and sample accuracy. In the vast West African wilderness, traditional drilling methods often suffer from severe sample contamination, slow drilling speeds, and poor performance in complex geological formations. It is against this backdrop that reverse circulation drilling equipment, with its unique double-walled drill pipe structure and pneumatic delivery principle, has revolutionized Ghana’s exploration landscape. It not only provides extremely high-purity cutting samples but also maintains exceptionally high operational efficiency in arid or water-scarce regions. Reverse circulation drilling equipment, often referred to as an RC drill rig or reverse circulation drilling machine, is a drilling system that uses compressed air as the circulation medium to deliver cuttings to the surface in real time through the central channel of a double-walled drill pipe. Unlike traditional drilling, the core of the RC drilling machine lies in its double-layered drill pipe structure, providing geologists with the most accurate information about the subsurface formations. This article will explore, using real-world case studies from the Ghanaian market, how this equipment has become the preferred choice for mining giants and junior exploration companies.
Get Factory Direct Pricing Today

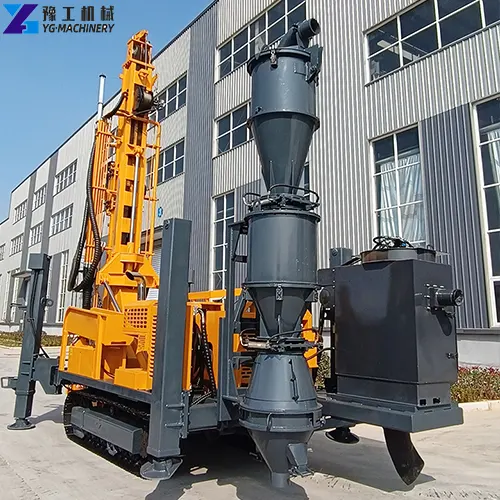

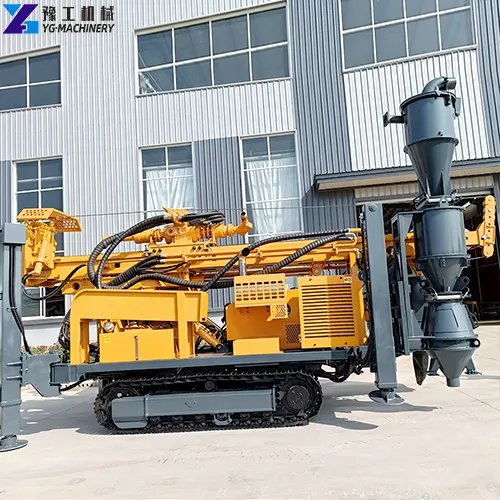

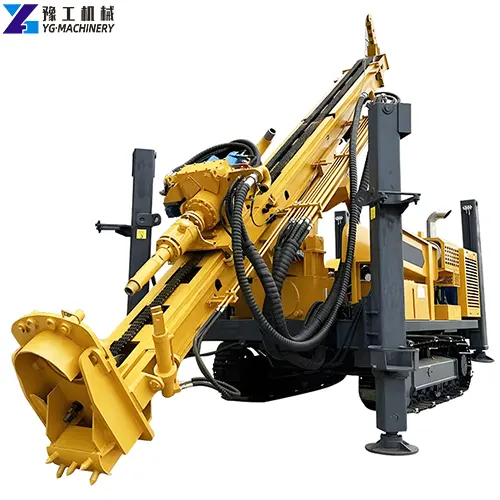

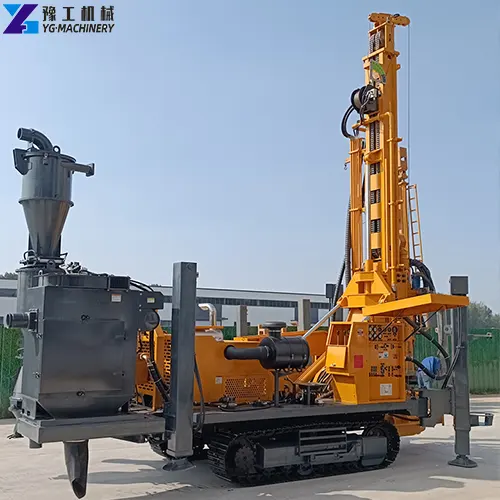

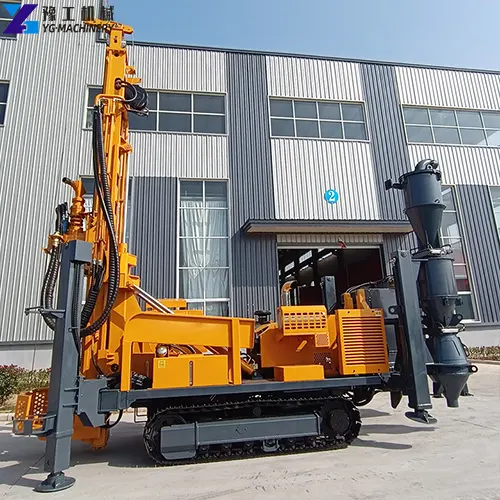

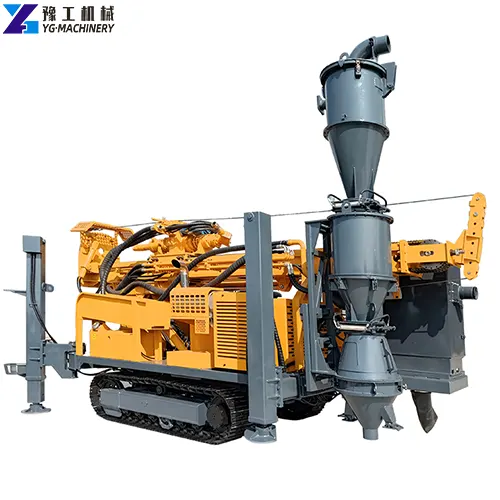

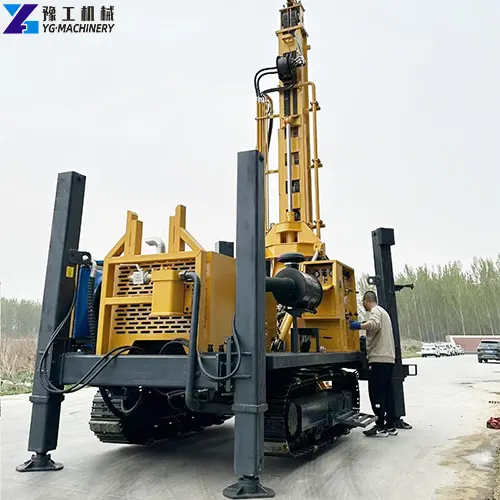

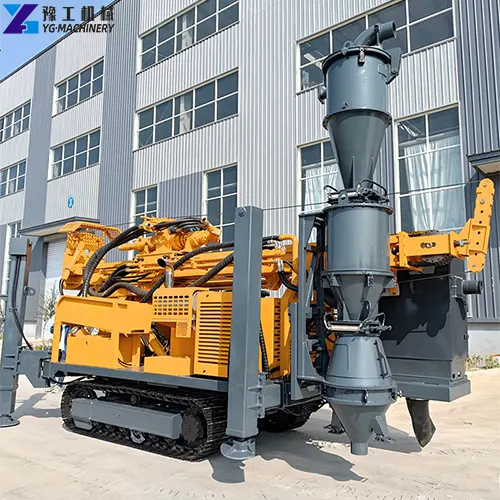

YG Reverse Circulation Drilling Rig Technical Specifications
| Model | YG-300 | YG-600 | YG-1000 |
| Max drilling depth | 300m | 600m | 1000m |
| Drilling diameter | 105-305mm | 105-550mm | 105-800mm |
| Drill rod length | 3m | 6m | 6m |
| Driving efficiency | 10-35m/h | 10-35m/h | 10-35m/h |
| Weight | 11t | 17t | 23t |
| Dimensions | 6.2*1.85*2.8m | 10.5.*2.25*3.3m | 11.5*2.25*3.4 |
| In addition to the above models, customized drilling rigs and accessories are also supported. Some models and parameters will be updated; please refer to the actual quotation. | |||
Get Factory Direct Pricing Today
Why Is Reverse Circulation Drilling Equipment the Preferred Choice for Mineral Exploration in Ghana?
Ghana’s Ashanti and Western regions are rich in gold resources, but the geological and construction environments are unique: the rainforest terrain is muddy and slippery, thick weathered sand layers are prone to borehole collapse, and some mining areas lack power grids and rely on diesel power. Traditional forward circulation drilling rigs are inefficient, cause severe sample contamination, and have high maintenance costs. Reverse circulation drilling equipment is specifically designed for these complex scenarios, and unlike ordinary drilling rigs, it boasts key advantages:
- Reverse circulation sampling ensures pure, impurity-free samples. The RC drilling machine uses a reverse circulation principle, driven by compressed air, with slag discharged from the center of the drill rod. Surface soil and impurities do not mix into the core, resulting in a sample recovery rate of ≥98% and a grade assessment error of <1%, avoiding misjudgments caused by sample contamination from traditional drilling rigs.
- Tracked off-road design adapts to the muddy terrain of the rainforest. The crawler RC drill rig comes standard with widened anti-slip tracks, resulting in low ground pressure. This allows for stable movement in mud, steep slopes, and loose sand layers, enabling 360° rotation and eliminating the need for frequent site leveling, thus increasing relocation efficiency by 60%.
- High-efficiency drilling, suitable for both soft and hard formations. The reverse circulation drilling machine features a high-torque power head with adjustable speed, easily penetrating clay, sand, and strongly weathered rock. Drilling speeds in soil are 15-30 m/h, and in hard rock, 5-10 m/h, which is 3-5 times faster than traditional drilling rigs.
- Low fuel consumption and maintenance, suitable for sites without power grids. A customized high-temperature dustproof engine reduces fuel consumption by 25% compared to similar equipment, consuming only 12-18L of fuel per hour. The fully enclosed dustproof hydraulic system reduces rainforest humidity and dust erosion, extending maintenance intervals by 50%, making it suitable for long-term field operations.
- Modular design for convenient transportation and assembly. The machine is compact and can be disassembled for transport, making it suitable for use on Ghana’s inland roads; on-site assembly requires no large equipment and can be completed by two people in four hours, allowing for rapid deployment into construction.
Core Applications of Reverse Circulation Drilling Equipment in Ghana
- Gold Exploration (Most Popular): Placer and lode gold exploration in areas such as Ashanti, Western, and Brong-Ahafo, covering thick weathered sand layers, clay, and strongly weathered rocks. RC drilling machines efficiently sample and accurately delineate ore bodies.
- Copper/Bauxite Exploration: Copper and bauxite prospecting in central and northern Ghana, where strata are mainly sedimentary and weathered rocks. Reverse circulation drilling machines are adaptable to both soft and hard strata, quickly obtaining core samples.
- Mineral Rights Assessment and Ore Body Delineation: Resource assessment before mineral rights acquisition for small and medium-sized exploration companies. RC drilling machines offer low cost, high efficiency, and rapid completion of large-area prospecting, reducing investment risk.
- Hydrogeological Exploration: Construction of water wells and groundwater monitoring wells in mining areas. RC drilling machines produce no mud pollution, are adaptable to sand layers and aquifers, and have high well completion efficiency.
- Basic Engineering Survey: For basic exploration of small mine plants and camps, the tracked vehicle is flexible and adaptable to remote construction sites, enabling rapid acquisition of geological data.
Get Factory Direct Pricing Today
Ghanaian Client Case Study: Kofi Mining’s Gold Mine Exploration Upgrade
Client Background
Kofi Mining is a medium-sized gold exploration contractor in Ghana’s Ashanti region, specializing in prospecting, orebody delineation, and mining rights assessment for placer gold mines in West Africa, serving small mines and exploration companies. The mine is located inland in the Ashanti rainforest, without power grids, with muddy, sloping terrain covered by thick weathered sand layers, and heavy rainfall during the rainy season, making construction conditions extremely challenging.
Pain Points of Existing Equipment (Construction Difficulties)
The client previously used an outdated forward circulation drilling rig, facing five major challenges that led to frequent project delays and cost overruns:
- Slow Drilling, Long Duration: The sand layers were prone to borehole collapse, and the drill bit would get stuck in hard rock, resulting in an average daily drilling depth of only 20-30 meters. Large-scale orebody prospecting took months, missing the mining rights window.
- Sample Contamination, Inaccurate Assessment: Surface soil mixed into the core sample during forward circulation slag removal, leading to large errors in gold grade and multiple instances of “false high-grade samples,” resulting in losses during subsequent mining operations.
- Terrain limitations and relocation difficulties: Wheeled drilling rigs frequently get stuck, requiring manual paving of muddy roads, and each relocation takes 1-2 days, resulting in high site preparation costs.
- High fuel consumption and frequent maintenance: Older engines consume 25-30L of fuel per hour; the hydraulic system lacks a dustproof design, leading to frequent malfunctions due to rainforest dust and humidity, requiring 2-3 maintenance shutdowns per week.
- Work stoppages during the rainy season and project delays: Traditional drilling rigs cannot operate in heavy rain. Ghana’s rainy season lasts up to 6 months, resulting in short effective construction time and project delays leading to losses.
Equipment Selection and Customization Solution
The client compared multiple brands from Europe, America, and China, ultimately choosing YG’s customized reverse circulation drilling equipment (YG-300 RC drilling rig), adapted to the Ghanaian rainforest conditions.
The customized configuration is as follows:
- Model: YG-300 RC drill rig, tracked type, maximum drilling depth 300m, hole diameter 105-305mm.
- Powertrain: Custom-designed Cummins high-temperature, dustproof engine, 110kW, suitable for temperatures up to 45℃, dustproof and moisture-proof.
- Chassis: Widened, anti-slip tracks, ground pressure ≤0.06MPa, suitable for muddy and loose sand layers.
- System: Fully enclosed dustproof hydraulic + reverse circulation sampling system, compressed air driven, no mud contamination.
- Drilling Tools: Custom-designed wear-resistant alloy drill bits, suitable for sandy layers and strongly weathered rock, reducing stuck drill bits.
- After-sales Service: Bilingual (Chinese + English) operation manual, remote video training, local spare parts warehouse in Ghana, 48-hour response.
On-site Construction Results (3-Month Data Comparison)
After delivery, the equipment was put into use at the Kofi Mining rainforest gold mine project. The 3-month construction data compared to the old equipment showed significant improvements:
- Drilling efficiency increased by 4 times: Average daily drilling depth of 80-120m, completing 8000m of exploration in 3 months, equivalent to one year’s work with the old equipment, and completing the ore body survey 2 months ahead of schedule.
- Sample purity and accurate assessment: Reverse circulation sampling was free of impurities, with a gold grade error of <0.8%, accurately delineating two high-grade ore bodies (1.2-2.5g/t), avoiding misjudgments, and indicating high subsequent mining value.
- Relocation efficiency increased by 70%: Tracked vehicle slump rate <5%, no need for paving in muddy sections, relocation time only 2-3 hours, saving labor and time costs.
- Fuel consumption reduced by 25%, maintenance reduced by 60%: Fuel consumption is 15L per hour, saving approximately $3000 in diesel costs per month; the dustproof design reduces malfunctions, requiring only one maintenance shutdown per month, saving over $2000 in maintenance costs.
- Normal operation during the rainy season, controllable project schedule: The fully enclosed design allows for normal operation in light and moderate rain, extending effective construction time by 50% during the rainy season, ensuring on-time project delivery.
Customer Testimonial (General Manager of Kofi Mining):
“We have been conducting gold exploration in the Ghanaian rainforest for 10 years and have used many drilling rigs. YG reverse circulation drilling equipment is the most suitable for local conditions! Reverse circulation sampling is clean, drilling is fast, the tracks are very stable in muddy terrain, fuel consumption is low, malfunctions are few, and it can work even in the rainy season, saving us a lot of costs and helping us find high-grade ore bodies earlier. The after-sales service is excellent, the remote training is simple and easy to understand, and local spare parts are supplied promptly. I highly recommend it to our colleagues in Ghana!
Get Factory Direct Pricing Today
Frequently Asked Questions about Purchasing Reverse Circulation Drilling Equipment (Highly Frequently Asked by Ghanaian Customers)
A1: Yes, the YG customized model features a high-temperature dustproof engine and a fully enclosed hydraulic system, providing dust and moisture protection. It can operate continuously at 45°C without failure; the sealed electrical cabinet allows for normal operation in light and moderate rain, making it suitable for Ghana’s climate.
A2: Operation is simple. The RC Drill Rig integrates an intelligent control panel with handle and button operation. It can be mastered in 1-2 days of training; it comes with an English operation manual, video tutorials, and remote guidance, making it easy for local workers to learn.
A3: This depends on the abrasiveness of the formation. In the quartz vein formations common in Ghana, YG original drill pipes undergo special heat treatment, and their lifespan is typically more than 30% longer than ordinary drill pipes.
A4: For RC drilling to a depth of 300 meters, an air compressor with a pressure of over 25 bar and a flow rate of around 900 cfm is typically required. We can provide integrated or split-type air compressor solutions.
A5: YG’s RC drilling rig series ranges from 200 meters to 1200 meters, depending on the exploration depth. Common gold mine exploration depths in Ghana are generally 200-600 meters, and the YG-400 or YG-600 models are sufficient. However, it is worth noting that some emerging gold mining projects in Ghana have already progressed to exploration depths exceeding 800 meters. Before selecting a model, it is best to consult a geologist to confirm the deepest design borehole depth for the entire mining area.
Contact us today for a quote and configuration tailored to your Ghana market needs.
Our team of sales engineers will provide different configuration options based on your exploration project size, target depth, and budget. Whether you are a junior mining company entering the Ghanaian market for the first time or a local contractor looking to expand drilling capacity, we can provide the best solution for you. Contact us now.
