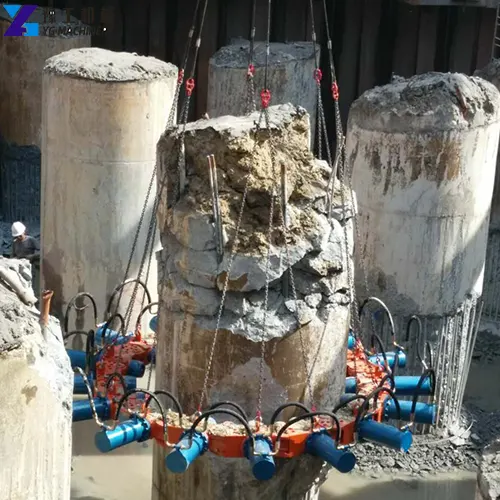

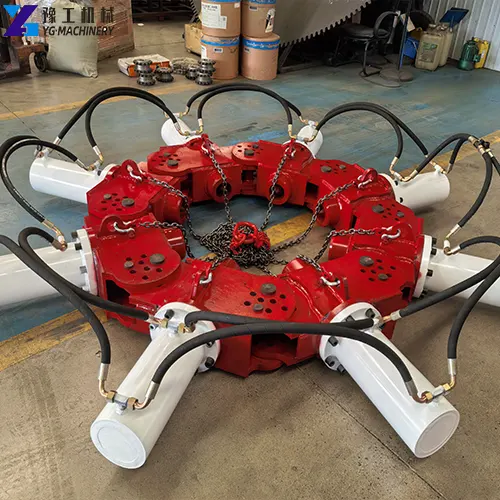

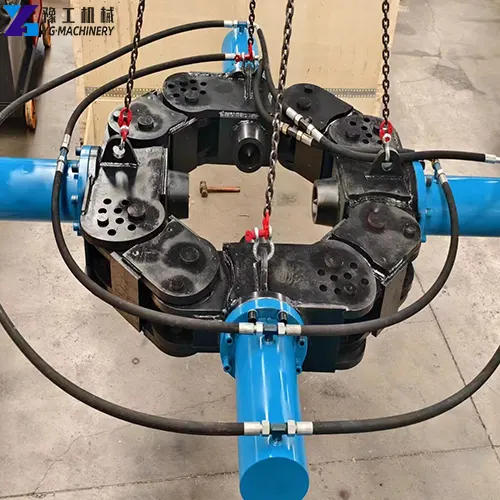

In the final stages of pile foundation construction, traditional manual pneumatic picks and hydraulic breakers are inefficient, easily breaking pile reinforcement and damaging the pile structure. They also generate significant noise, dust, and safety hazards. The hydraulic pile breaker is a specialized hydraulic attachment developed specifically for pile head breaking and is currently a core piece of equipment in the engineering field, replacing traditional pile breaking methods. This excavator hydraulic pile breaker boasts high compatibility, adapting to both round piles and square piles—two mainstream pile types. One device can handle multiple pile types, significantly reducing equipment procurement costs.
- It can handle both round and square piles. Simply changing different modules or adjusting the number of modules allows for adaptation to different pile types.
- It covers pile diameters from 300 mm to 2500 mm, meeting the needs of most projects.
- No excavator needed? No problem—you can choose a combination of a pile breaker and an independent hydraulic pump station, driven by an electric motor or diesel engine.
This means that no matter what type of pile foundation project you have, YG can find the most suitable pile-breaking solution for you.
Contact us now for more product information.
Get Factory Direct Pricing Today
YG Excavator Hydraulic Pile Breaker Technical Parameters
| Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Single-module weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Single-module weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Single-module size | A combination of the total weight | ||||||||
Get Factory Direct Pricing Today
What Are the Core Features of a Hydraulic Pile Breaker?
- Efficiency More Than 10 Times That of Manual Labor
- Manual pile breaking: 3 skilled workers can break approximately 10-15 piles (800mm diameter) per day.
- Hydraulic pile breaker: 1 excavator + 1 operator can break 100-150 of the same piles per day.
Efficiency is increased by a full 10 times. Moreover, the larger the pile diameter, the more significant the efficiency advantage of the pile breaker. For large-diameter piles, it might take several days to break one manually, while the pile breaker can complete it in tens of minutes.
For large projects with hundreds or even thousands of piles, the time savings brought by this efficiency improvement are enormous.

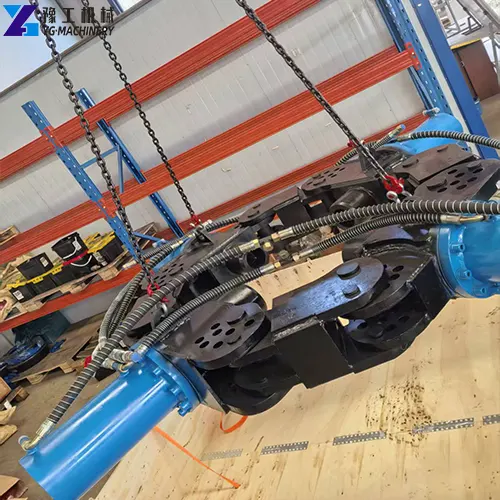

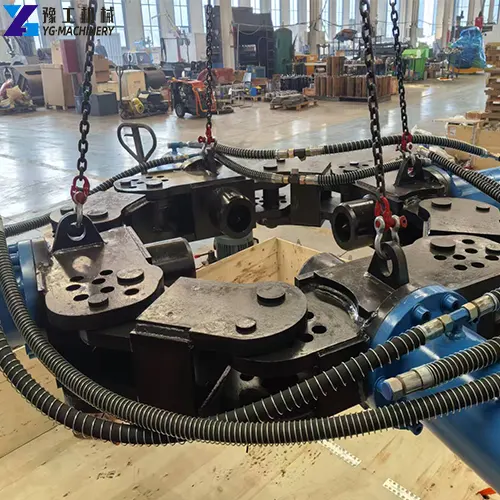

- Versatile for Both Square and Round Piles, Wide Applicability
Many customers worry: My construction site has both round and square piles, do I need to buy two machines? YG’s excavator hydraulic pile breaker perfectly solves this problem:
- By changing different-shaped modules, it can handle round piles and square piles.
- By increasing or decreasing the number of modules, it can handle piles of different diameters.
- One machine can cover a pile diameter range from 300 mm to 2500 mm.
This means that no matter what type of pile your project has, one YG pile breaker can handle it. Equipment utilization is greatly improved, and return on investment is faster.
- Stable Pile Breaking Quality and High Flatness
The biggest problem with manual pile breaking is inconsistent quality. The worker’s skill level, physical condition, and work attitude all affect the quality of pile breaking. Problems such as uneven pile heads, bent rebar, and damaged pile bodies often occur, requiring rework.
Hydraulic pile breakers completely eliminate these problems:
- All cylinders operate synchronously, ensuring uniform pressure and a smooth pile head cross-section.
- The cutting position is precisely controllable, with an error not exceeding ±5mm.
- It does not damage the pile body or reinforcing steel, guaranteeing pile foundation quality.
- The breaking quality of each pile is completely consistent.
The broken pile head passes the supervisor’s inspection on the first attempt, eliminating the need for rework.
- Dual Power Options for Flexible Adaptation
YG offers two power options:
- Excavator Drive: Utilizes the excavator’s hydraulic system, suitable for customers with existing excavators.

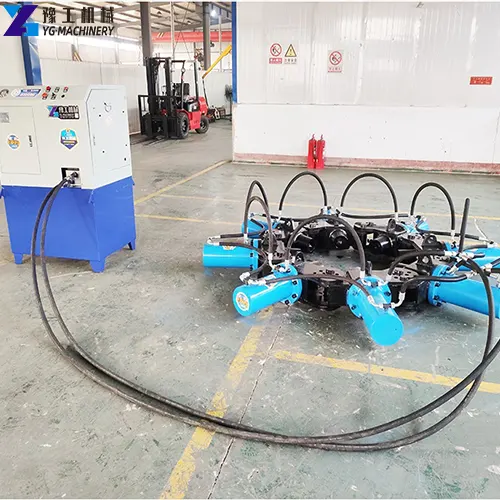

- Independent Hydraulic Pump Station Drive: Equipped with a dedicated hydraulic pump station (electric or diesel), usable even without an excavator.
The hydraulic pump station option is particularly suitable for:
- Customers who do not currently have a suitable excavator.
- Construction sites where the excavator needs to perform other tasks simultaneously.
- Scenarios with limited space where excavators cannot enter.
- Professional pile-breaking teams perform large-scale pile-breaking operations regularly.
The pile-breaking modules for both options are completely interchangeable and can be switched as needed.

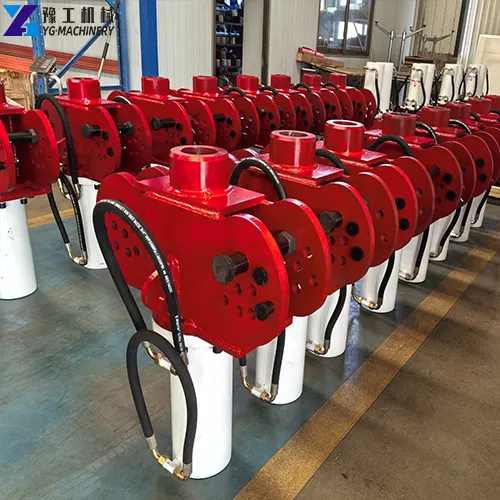

5. Modular Design, Convenient Maintenance, and Low Cost
YG pile breakers adopt a modular design, offering numerous advantages:
- A damaged module can be replaced individually, eliminating the need to return the entire machine to the factory.
- Modules can be added or removed according to pile diameter requirements, allowing for flexible configuration.
- Spare parts are universal, reducing inventory costs.
- Maintenance is simple; most problems can be handled on-site.
Furthermore, pile breakers have very few consumable parts, primarily the chisel rod. Under normal use, the chisel rod can last 6-12 months, resulting in very low replacement costs.
Compared to the daily consumption of pneumatic picks, drill bits, and air compressor oil for manual pile breaking, the operating costs of pile breakers are negligible.
- Selling in Dozens of Countries Worldwide, Proven Quality
YG pile breakers have been exported to dozens of countries and regions worldwide, including Australia, the United States, Canada, the United Arab Emirates, Saudi Arabia, Qatar, South Africa, Kenya, Nigeria, India, Vietnam, Indonesia, Malaysia, the Philippines, Thailand, Russia, Germany, Poland, Brazil, and Mexico.
Each country has different working conditions and pile types, but YG pile breakers can perfectly adapt to them. Consistent praise from customers worldwide is the best proof of our product quality.
Get Factory Direct Pricing Today
What Are the Suitable Applications of Hydraulic Pile Breakers?
- Building Construction: Pile foundation engineering for residential buildings, office buildings, factories, etc. These projects typically involve a large number of piles, tight schedules, and high requirements for pile-breaking quality. Hydraulic pile breakers are the best choice.
- Bridge Engineering: Bridge pile foundations usually have large diameters and long shafts. Manual pile breaking is extremely inefficient and difficult to guarantee quality. Hydraulic pile breakers can quickly and efficiently remove large-diameter piles.
- Port and Dock Engineering: Pile foundation engineering for ports and docks is usually large-scale, and much of it involves operations on water. Manual pile breaking is difficult and carries high safety risks. Hydraulic pile breakers, combined with excavator boats, can operate efficiently.
- High-Speed Rail and Subway Engineering: High-speed rail and subway projects have extremely high requirements for pile foundation quality, with strict standards for pile head flatness and rebar protection. The high precision of hydraulic pile breakers perfectly meets these requirements.
- Wind Power Foundation Engineering: Wind turbine foundations typically consist of large-diameter piles, often exceeding 2 meters in diameter, making manual breaking impossible. Hydraulic pile breakers are currently the only equipment capable of efficiently handling ultra-large diameter piles.
- Water Conservancy and Hydropower Projects: Piling foundation projects for reservoirs, dams, and hydropower stations are usually located in remote areas with poor living conditions for workers and difficulty in recruiting. Hydraulic pile breakers can significantly reduce manpower requirements and alleviate logistical pressure.
- Municipal Engineering: Municipal engineering projects are typically located in urban areas with strict noise and dust control requirements and generally have tight deadlines. The low noise, low dust, and high efficiency of hydraulic pile breakers make them particularly suitable for municipal projects.
- Specialized Pile Breaking Teams: For specialized pile breaking teams, hydraulic pile breakers are essential equipment. With a pile breaker, they can offer competitive pricing, work quickly, ensure quality, and thrive.
Get Factory Direct Pricing Today
Frequently Asked Questions about YG Hydraulic Pile Breakers
A1: Yes. Our high-end models support both round and square piles. The modules can be quickly adjusted to adapt to different pile sizes, allowing one set of equipment to complete all types of pile-breaking operations.
A2: Yes. The equipment supports dual-power modes and can be paired with an independent hydraulic pump station to form a separate unit, allowing for independent pile head breaking operations without an excavator.
A3: They have similar functions but different applications. The pile breaker is specifically designed for breaking regular concrete pile heads; the rock splitter is mainly for breaking hard rock. They cannot be used interchangeably; selection should be based on specific needs.
A4: No. The equipment uses multi-cylinder synchronous static extrusion technology, breaking only the surface concrete with uniform force, preserving the reinforcing steel intact, and meeting engineering acceptance standards. Q5: What size excavator is the excavator hydraulic pile breaker compatible with?
A5: The equipment is universally compatible with mainstream excavators ranging from 10 to 36 tons. No modification to the main unit is required; it allows for quick mounting and docking and is compatible with various excavator brands and models both domestically and internationally.
A6: Extremely adaptable. The entire machine undergoes rust-proof, dust-proof, and high-temperature-resistant treatment. The hydraulic system is sealed and protected, allowing it to withstand various harsh outdoor working conditions overseas for extended periods.
A7: YG’s pile breakers are sold in dozens of countries worldwide. Major markets include: Australia, the United States, Canada, the United Arab Emirates, Saudi Arabia, Qatar, South Africa, Kenya, Nigeria, India, Vietnam, Indonesia, Malaysia, the Philippines, Thailand, Russia, Germany, Poland, Brazil, and Mexico.
Customers in each country have given very positive feedback.
A8: Generally, it can break concrete with a strength of C30 to C50. This is also the most commonly used concrete strength grade in engineering. If the concrete strength exceeds C60, or if the pile contains a large amount of reinforcing steel, we recommend choosing a larger size to ensure sufficient pile-breaking force.
YG’s engineers will recommend the most suitable model for you based on your specific situation.
