An excavator concrete vibrator, also known as an excavator-mounted concrete vibrator or excavator tamping rod, is a concrete vibration attachment specifically designed for use on excavators. Its core function is to use high-frequency vibration to expel air bubbles from the concrete, ensuring dense compaction and preventing quality defects. It widely replaces traditional handheld vibrators and is suitable for various concrete pouring scenarios.
Compared to hydraulic concrete vibrators, excavator concrete vibrators do not require an additional hydraulic power station. They can be powered directly by the excavator’s own hydraulic system, offering greater adaptability and mobility. Furthermore, it can share the excavator platform with excavator vibrator hammers and excavator pile drivers, allowing for quick switching via excavator quick couplers, achieving “one machine, multiple uses” and significantly improving equipment utilization.

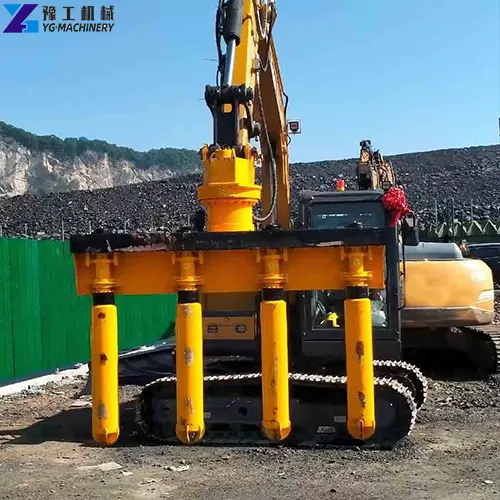

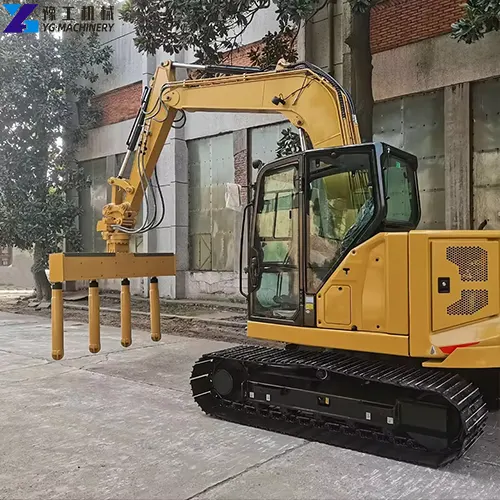

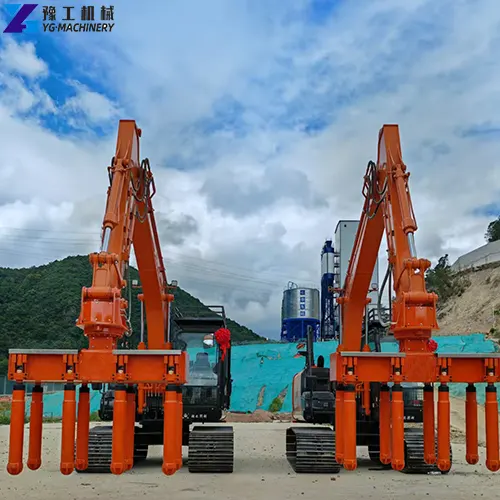

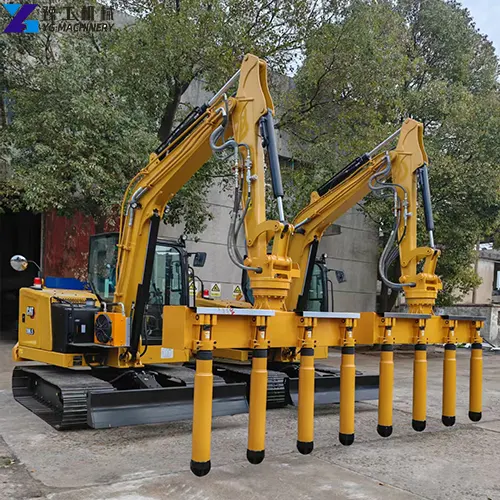

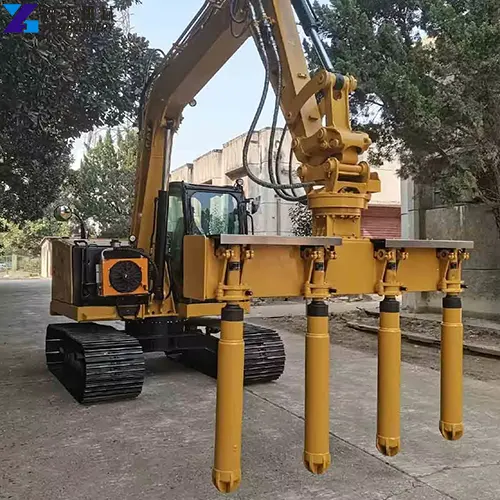

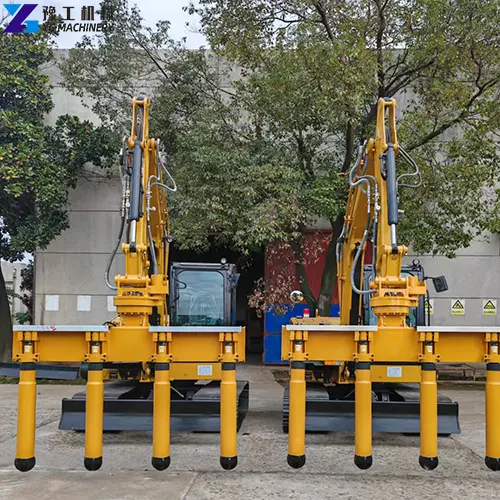

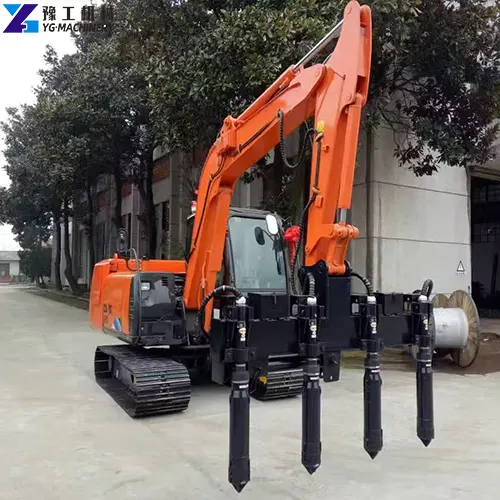

In terms of appearance, the excavator concrete vibrator is cylindrical in shape and consists of three parts: a vibrator rod, a connecting arm, and a hydraulic connector. The vibrator rod head is made of wear-resistant material with a smooth surface, making it easy to insert into the concrete and preventing material from sticking. The connecting arm can be adjusted in length according to construction needs, adapting to vibration operations of different depths and ranges. The hydraulic connector adopts a standardized design, allowing for quick connection to excavators of various tonnages, making installation convenient. If your project also requires high efficiency, then YG’s excavator concrete vibrator is a good choice.
Get Factory Direct Pricing Today
YG High-frequency Excavator Concrete Vibrator Parameter
| Parameter categories | Parameter Name | Model YG-V15 (Medium) | Model YG-V30 (Heavy-duty) | units | Notes/Application Scenarios |
| Compatibility requirements | Compatible Excavator Tonnage | 12 T～20 T | 20 T～40 T | T | Suitable for medium to large excavators, providing hydraulic power. |
| Working Hydraulic Flow Requirement | 80～150 | 150～250 | L/min | Requires backup hydraulic lines for excavators. | |
| Working Hydraulic Pressure Requirement | 18～25 | 25～30 | MPa | Ensuring the vibrator’s working efficiency. | |
| Vibration performance | Vibration Frequency (High Frequency) | 10,000～12,000 | 12,000～15,000 | VPM（breths/minute) | Higher frequency results in better compaction. |
| Vibration Force (Centrifugal Force) | 15～25 | 25～40 | kN | Determines the vibration intensity and compaction range. | |
| Vibrating rod specifications | Standard Rod Diameter (D) | 100 | 150 | mm | Optional diameter to accommodate different aggregate sizes. |
| Standard Rod Length (L) | 4 | 6 | m | (Length can be customized) | |
| Maximum Customizable Length | 6 | 12 | m | Suitable for ultra-deep foundations, dams, and nuclear power plants. | |
| Equipment body | Total Weight (excluding connecting plates and rods) | 300 | 550 | kg | Easy to install and transport. |
| Structural Material | High-strength wear-resistant alloy steel | High-strength wear-resistant alloy steel | – | Ensures long-term service life in concrete. | |
| Starting and Control | Excavator foot pedal valve/handle control | Excavator foot pedal valve/handle control | – | No additional power supply or control system required. | |
| Application advantages | Applicable Project Types | Bridge pile foundation, subway tunnel, medium-sized foundation | Large dams, nuclear power plants, and ultra-deep pile foundations | – | – |
Get Factory Direct Pricing Today
What Are the Core Functions of an Excavator Concrete Vibrator?
- High-frequency vibration for optimal compaction: Vibration frequency reaches 9000 r/min (150 Hz), providing a strong excitation force to quickly remove air bubbles from the concrete, achieving a compaction density of over 98%. This completely solves the problems of insufficient compaction and honeycomb-like surface defects associated with traditional vibration methods, improving compaction efficiency by 40% compared to ordinary hydraulic concrete vibrators.
- Fully hydraulic drive for wide compatibility: Powered directly by the excavator’s own hydraulic system, eliminating the need for an additional power station. Compatible with various excavators ranging from 10 to 30 tons, and also compatible with excavator quick couplers, allowing for quick switching to attachments such as excavator vibrator hammers and excavator pile drivers, enabling multi-purpose use.
- Adjustable design for diverse working conditions: The vibrator length is adjustable (1.5-3 meters) to meet construction needs, and the vibration frequency is infinitely adjustable, adapting to concretes of different slumps and thicknesses. Whether for shallow pouring or deep compaction, it provides precise adaptation, solving vibration challenges in various scenarios.
- Wear-resistant and durable, long service life: The vibratory rod is forged from high-strength alloy steel with a hardened surface, making it wear-resistant and corrosion-resistant. The hydraulic joints have excellent sealing performance, preventing hydraulic oil leakage. Core components have a one-year warranty, and the service life under normal use can reach over 5000 hours, 30% longer than ordinary vibrators.
- Convenient operation, saving labor: No professional operators are required; excavator drivers can complete the vibration operation. One person can replace 3-4 handheld vibrator operators, significantly reducing labor costs. Installation and disassembly are convenient; with the excavator’s quick coupler, installation can be completed within one minute, reducing equipment changeover time.
- Anti-jamming design, reducing failures: The vibratory rod head features a streamlined design with a smooth surface, allowing easy insertion into the concrete and avoiding jamming and material sticking issues. An internal overload protection device prevents damage from excessive vibration frequency, reducing the failure rate and maintenance costs (Additional topic: Anti-jamming + overload protection, reducing later operational risks).
- Adaptable to complex environments and highly versatile: It adopts a waterproof, dustproof, and high-temperature resistant design, which can operate normally in complex construction environments such as open air, humidity, and high temperature. It is suitable for construction in multiple fields, such as building, bridge, and water conservancy, without the need for additional protection, making it more worry-free to use.
Get Factory Direct Pricing Today
What Engineering Scenarios Are Suitable for an Excavator Concrete Vibrator?
- Building Foundation Construction: Used for vibrating concrete in building foundations, basement slabs, columns, and walls to ensure foundation compaction and improve structural strength. It is a core vibrating device for small to medium-sized building projects and can be used with an excavator pile driver to complete integrated foundation piling and vibration operations.
- Bridge Construction: Used for vibrating bridge abutments, piers, box girders, and bridge deck pavement. Especially suitable for large-volume concrete pouring, it can avoid internal stress concentration, improve bridge durability, and adapt to the complex construction scenarios of bridge projects.
- Road Construction: Used for vibrating concrete pavement pouring in municipal roads, highways, and parking lots to ensure a smooth and dense pavement, reduce shrinkage cracks, and extend pavement life. Suitable for the large-area vibration needs of road projects.
- Water Conservancy Engineering Construction: Used for concrete pouring and vibration in reservoir dams, sluices, and irrigation canals to ensure concrete impermeability and durability, prevent structural damage caused by water erosion, and is suitable for the humid construction environment of water conservancy projects.
- Precast Component Production: Used for vibration of precast beams, columns, floor slabs, stairs, and other precast components to ensure component strength meets standards and appearance is smooth. Suitable for large-scale production in precast plants, it is more than 3 times more efficient than traditional vibration equipment.
- Underground Engineering Construction: Used for concrete vibration in tunnel lining and underground integrated pipe gallery construction. It can operate in narrow spaces, solving the pain point of manual vibration being difficult to reach. When paired with an excavator quick coupler, attachments can be quickly switched, improving construction efficiency.
- Slope Protection Construction: Used for vibration of concrete slope protection and retaining walls to enhance the bonding force between concrete and slope, improve support stability, and is suitable for complex terrain in slope engineering. It can be used in conjunction with an excavator vibrator hammer to complete slope trimming and vibration operations.
- Small-scale construction projects: Suitable for small-scale projects such as courtyard hardening, small component casting, and old building restoration. It is easy to operate, flexible to move, requires no large equipment, and is suitable for the needs of small and medium-sized construction teams and individual businesses. Its cost-effectiveness far exceeds that of a hydraulic concrete vibrator.
Get Factory Direct Pricing Today
Frequently Asked Questions about the Excavator Concrete Vibrator
A1: Yes, as long as the excavator has a breaker line, we can match it with a custom connector and hydraulic fitting.
A2: Yes. We offer standard lengths from 2 meters to 10 meters, and can also customize to your specific project needs.
A3: Very simple. The main tasks are to periodically check the hydraulic oil cleanliness, lubricate the connecting pins, and check the wear of the vibrator head.
A4: No. Although both utilize vibration, the vibrator is used for compacting concrete, while the vibratory hammer is used for driving and extracting piles. However, they can share the excavator’s hydraulic system.
A5: Fully supported. Our drive heads feature a multi-sealed design, optimized for underwater and muddy environments.
A6: Yes, YG Machinery offers a full range of excavator attachments, including pile drivers, shears, and grapples.
