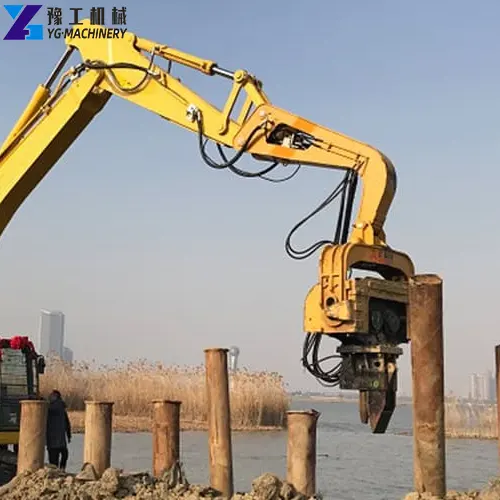

An excavator mounted sheet pile driver is a hydraulic vibratory attachment designed to install and extract steel sheet piles, H-beams, pipe piles, and other compatible pile types using a standard excavator as the carrier platform. For contractors involved in foundation support, retaining wall construction, trench shoring, temporary cofferdams, or waterfront piling work, this type of attachment can offer a mobile alternative to standalone pile-driving rigs — provided the excavator meets the required weight, hydraulic flow, and hydraulic pressure specifications.
YG Machinery manufactures hydraulic vibratory pile driver attachments in multiple models, covering excavators from 8 tons to 55 tons. The attachment uses the excavator’s existing hydraulic system to power a dual eccentric-shaft vibratory mechanism, which generates vertical vibration to reduce soil friction around the pile and allow it to penetrate under combined vibratory force, pile weight, and excavator downforce.
Before selecting a model, YG needs to confirm the excavator’s operating weight, hydraulic flow, hydraulic pressure, attachment interface, pile type, and site conditions. Actual performance depends on these factors as well as soil geology, pile dimensions, and the selected driving method.
Get a Same-Day Quote for an Excavator-Mounted Sheet Pile Driver
Check YG Excavator-Mounted Pile Driver Technical Parameters
| Model | YG150D | YG250D | YG350D | YG400D | YG450D |
| Eccentric moment(kg*m) | 3.2 | 5.1/5.7 | 7.1 | 9.2 | 11 |
| Speed(rpm) | 2600 | 2600 | 2600 | 2600 | 2600 |
| Excitation force(t) | 24 | 38/42 | 52 | 68 | 81 |
| Operating pressure of oil system(bar) | 200 | 300 | 320 | 330 | 330 |
| Flow demand for hydraulic oil system(lpm) | 100 | 163 | 220 | 260 | 300 |
| Weight(t) | 1.2 | 1.6 | 2.4 | 2.5 | 2.6 |
| Excavator(t) | 8-12 | 20-25 | 25-35 | 35-45 | 40-55 |
Get Your Free Spec Sheet About Excavators Piling Machines
What Is an Excavator-Mounted Sheet Pile Driver?

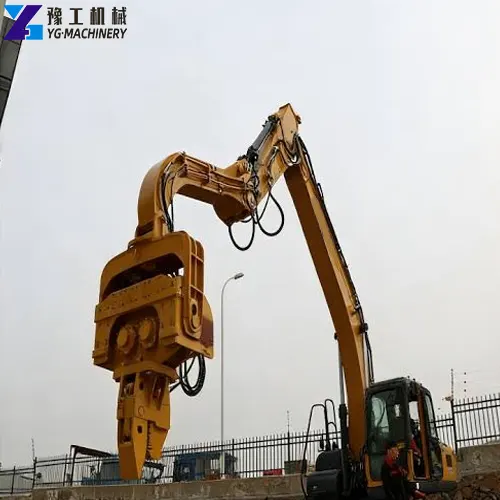

An excavator-mounted sheet pile driver is a hydraulically powered attachment installed on the boom of a compatible excavator. Its primary function is to convert the excavator into a pile-driving platform, enabling the installation and extraction of sheet piles and other pile types without requiring a separate, dedicated piling rig.
How it connects to the excavator:
The attachment mounts to the excavator’s boom via a mounting bracket or quick coupler interface. Hydraulic hoses connect the attachment to the excavator’s auxiliary hydraulic circuit, transferring flow and pressure to the attachment’s hydraulic motor.
How hydraulic power is transferred:
Inside the attachment, a hydraulic motor drives two eccentric shafts that rotate in opposite directions at high speed. The horizontal forces generated by the eccentric masses cancel each other out, while the vertical forces combine to produce a powerful up-and-down vibratory motion. This vibration is transmitted through the clamp into the pile.
How it drives the pile:
The vibratory force temporarily reduces the friction between the pile surface and surrounding soil — a process sometimes described as soil liquefaction in the immediate zone. Combined with the pile’s own weight and any downforce applied by the excavator arm, the pile penetrates into the ground. To extract a pile, the same vibration is applied while the excavator lifts.
Key components may include:
- Hydraulic vibratory hammer unit
- Pile clamp or gripping jaw
- Mounting bracket
- Hydraulic hoses and connections
- Control valve
- Damping or isolation elements
- Wear-resistant clamp inserts
8 Applications of YG Excavator Mounted Sheet Pile Driver

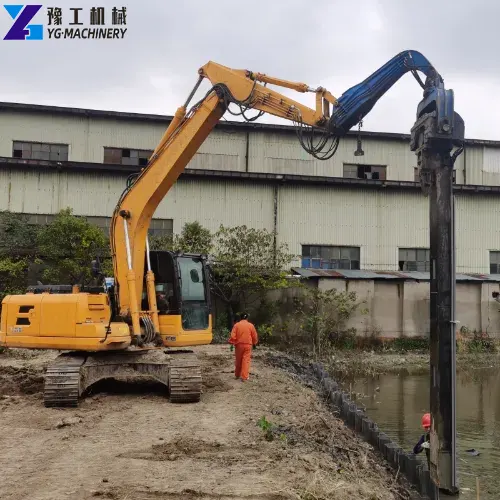

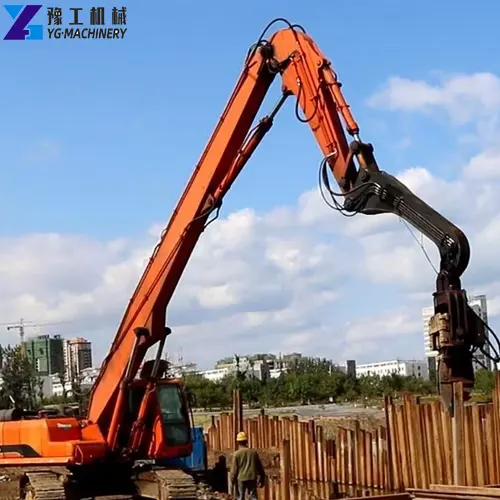

1. Steel Sheet Pile Installation
The primary application of this attachment. Steel sheet piles are commonly used for:
- Foundation pit support
- Temporary cofferdams
- Riverbank and canal protection
- Retaining walls
- Underground structure shoring
Both U-type and Z-type sheet piles can be handled, depending on clamp configuration.
2. Retaining Wall Construction
Sheet piles driven with an excavator-mounted pile driver can form continuous retaining walls for excavation support, slope stabilization, or landscape earth retention. The excavator’s reach and mobility allow work along extended wall lines.
3. Trench Shoring
For utility trenches, pipeline corridors, and excavation support, sheet piles or steel piles can be installed to prevent soil collapse. Trench shoring designs must be prepared by a qualified engineer based on soil conditions, depth, and site-specific factors.
This attachment can support trench shoring piling, but the shoring design itself is the responsibility of the project engineer.
4. Temporary Cofferdams
In waterfront or riverine construction, temporary sheet pile cofferdams are used to create dry work areas. The excavator-mounted sheet pile driver can install and later extract these temporary piles. Suitability depends on water depth, soil conditions, pile length, and environmental requirements.
5. Road and Bridge Projects
Used for driving steel pipe piles and sheet piles in bridge approach work, abutment support, sound barrier foundations, and road slope reinforcement.
6. Waterfront and Marine Construction
Seawall reinforcement, wharf expansion, dock sheet pile walls, and channel bank protection. Marine environments require attention to corrosion, equipment access, tidal conditions, and pile extraction for reuse.
7. Utility and Pipeline Construction
Municipal utility tunnels, subway station support, underground parking structures, and pipeline trench shoring. The excavator’s ability to work in relatively confined urban areas is one of the advantages of this system.
8. Equipment Rental and Distributor Use
Equipment rental companies and construction equipment distributors can offer the excavator-mounted sheet pile driver as an add-on attachment for excavator fleets. This allows contractors to rent a piling solution without purchasing a dedicated rig.
When This Attachment May Not Be Suitable
- Hard rock or heavily cemented ground.
- Large buried concrete or steel obstructions.
- Piles exceeding the clamp’s gripping capacity or the excavator’s lifting capacity.
- Excavators with insufficient hydraulic flow or pressure.
- Extremely restricted access where the excavator cannot reach the pile line.
- Projects requiring specialized low-vibration control near sensitive structures.
- Sites where local noise or vibration regulations require alternative methods.
Explore Customization Options for Excavator Mounted Sheet Pile Driver
How to Match the Pile Driver with Your Excavator
Selecting the right attachment model starts with matching it to your excavator. Use the following checklist before requesting a quotation.
1. Excavator operating weight
The attachment must be proportionate to the excavator. Too light an excavator leads to instability; too heavy an excavator wastes the attachment’s capability.
- YG150D → 8–12 t excavator
- YG250D → 20–25 t excavator
- YG350D → 25–35 t excavator
- YG400D → 35–45 t excavator
- YG450D → 40–55 t excavator
2. Hydraulic flow (lpm)
The excavator’s auxiliary circuit must deliver the required flow to spin the hydraulic motor at operational speed. Insufficient flow reduces vibration effectiveness.
3. Hydraulic pressure (bar)
The excavator’s hydraulic system must support the required working pressure. Operating above or below rated pressure affects performance and equipment life.
4. Auxiliary hydraulic circuit
The excavator must have a dedicated auxiliary hydraulic circuit for the attachment. Confirm the number of available circuits and their capacity.
5. Return-line configuration
Proper return-line flow prevents hydraulic overheating during continuous operation. Some models may require an additional return line or case drain.
6. Attachment interface
Confirm the mounting bracket type and pin diameter. If a quick coupler is used, verify its compatibility with both the excavator and the attachment.
7. Lifting capacity and stability
The excavator must safely handle the attachment weight plus the pile weight at the working radius. Stability during driving is critical.
8. Counterweight and machine configuration
Additional counterweight may be needed for heavier piling configurations. Consult the excavator manufacturer’s load chart.
9. Boom and arm reach
Sufficient reach is needed to position piles at the required location and angle.
10. Operator controls
The operator must be able to control the vibratory motor, clamp, and excavator movements simultaneously. Confirm available control configurations.
Find the Model for My Excavator
Comparison with Other Pile-Driving Methods
The following table compares the excavator-mounted sheet pile driver with other common pile installation methods. This is intended as a general reference — the best choice depends on the specific project.
| Factor | Excavator-Mounted Sheet Pile Driver | Standalone Vibratory Pile Driver | Crawler-Mounted Pile Driver | Hydraulic Press-In System | Manual / Small-Equipment Installation |
| Main carrier | Compatible excavator | Dedicated carrier unit | Crawler base | Specialized press-in machine | Manual labor or small crane |
| Site mobility | High — uses excavator travel | Depends on carrier type | Moderate — crawler-based | Limited to setup position | Very limited |
| Setup time | Moderate — mount and connect | May require carrier mobilization | More extensive setup | Specialized setup required | Minimal but slow progress |
| Suitable project scale | Small to large sheet pile projects | Medium to large piling projects | Dedicated large-scale foundation projects | Specialized low-vibration projects | Very small or access-restricted jobs |
| Hydraulic requirements | Uses excavator auxiliary hydraulics | Self-contained or external power pack | Self-contained hydraulic system | Dedicated hydraulic power | N/A |
| Access conditions | Can work in tighter areas than dedicated rigs | Requires carrier access space | Larger equipment footprint | Requires reaction force setup | Works in very confined areas |
| Compatible pile types | Sheet piles, H-beams, pipe piles, concrete piles, timber piles | Similar range, depends on clamp | Depends on configuration | Compatible pile sequences only | Limited pile types |
| Noise and vibration | Moderate — vibratory method | Moderate to high | Varies by hammer type | Low vibration | Low |
| Transport requirements | One excavator + attachment | Carrier + driver + possibly power pack | Full crawler rig transport | Multiple specialized units | Minimal |
| Pile extraction | Supported — same vibration + lift | Supported | Depends on configuration | Limited | Difficult |
| Best use case | Projects requiring mobile pile installation using an existing excavator | Larger or specialized piling projects | Dedicated foundation projects requiring high capacity | Low-vibration pile installation in sensitive areas | Very small jobs or emergency repair |
| Key limitation | Requires hydraulic and weight compatibility with excavator | Higher equipment and transport cost | Larger footprint and mobilization cost | Requires compatible pile sequence and reaction force | Slow, labor-intensive, limited depth |
YG Excavator Pile Driver Benefits for Contractors and Equipment Owners
- Use an existing excavator as the carrier. For contractors who already own a compatible excavator, the attachment can provide pile-driving capability without purchasing a separate carrier machine.
- Reduced mobilization for certain projects. Where a dedicated crawler rig would require additional transport and setup, the excavator can travel to the work area under its own power.
- Movement between pile locations. The excavator can reposition quickly between piles along a sheet pile wall line or across a site.
- Flexibility for multi-task projects. After piling work, the excavator can switch back to a bucket, breaker, or other attachment — reducing idle equipment time.
- Useful in confined areas. On sites where a large crawler-mounted rig cannot easily access the pile line, an excavator may reach the work area more readily.
- Rental fleet expansion. Equipment rental companies can offer the pile driver as an additional attachment option alongside breakers, augers, and grapples.
- Integrated driving and extraction. The same vibratory attachment can install and remove piles. Extracted piles can potentially be reused, depending on their condition.
- Project-specific configuration. Different models serve different excavator sizes and pile types, allowing buyers to match the attachment to their primary work.
Important limitations:
- The excavator must have sufficient operating weight, hydraulic capacity, stability and lifting performance for the selected attachment and pile.
- Vibratory pile driving is not suitable for rock or heavily obstructed ground.
- Noise and vibration levels must comply with local regulations.
- Performance varies based on soil type, pile dimensions and operator experience.
Click to Contact Us for Full Technical Specifications
Frequently Asked Questions About YG’s Excavator Pile Drivers
A1: No. The excavator must meet the attachment’s requirements for operating weight, hydraulic flow, hydraulic pressure, and mounting interface. Using an undersized or hydraulically insufficient excavator can result in poor performance or safety issues.
A2: Flow ranges from 100 lpm (YG150D) to 300 lpm (YG450D). Pressure ranges from 200 bar to 330 bar depending on the model. Confirm your excavator’s auxiliary hydraulic output against the attachment’s requirements.
A3: Yes. The attachment is designed for steel sheet pile installation, including U-type and Z-type profiles, depending on clamp configuration. It can also handle H-beams, pipe piles, concrete piles, and timber piles.
A4: Yes, with the appropriate clamp jaw. Different pile profiles require different jaw configurations. Contact us with your pile specifications for clamp selection guidance.
A5: The vibratory method works effectively in sand, clay, silt, and gravel layers. It is not suitable for driving piles into solid rock or heavily cemented ground. For difficult ground conditions, consult our team to assess feasibility.
A6: Excavator brand and model, operating weight, hydraulic flow, hydraulic pressure, pile type, pile dimensions, soil condition, project location, required depth and quantity of piles. Photos or videos of the excavator and site are helpful.
A7: This depends on the order terms. Some orders include remote technical guidance; others may require the buyer to arrange local installation. Confirm installation scope before placing the order.
A8: YG offers different clamp jaw configurations for various pile profiles. Custom clamp designs may be available for non-standard pile types.
