Moving a heavy machine is not just a question of tonnage. You also need to know how to support it, whether it can turn along your route, and what equipment is needed before movement begins.

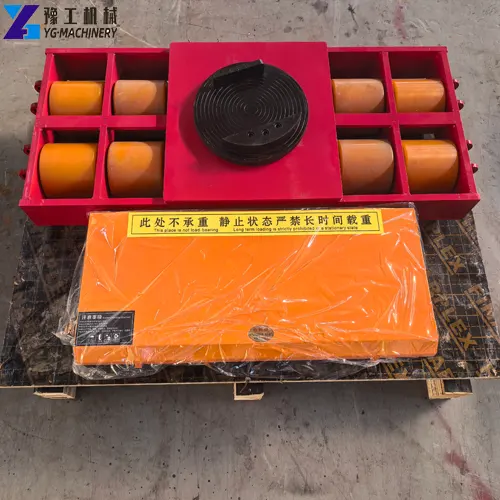

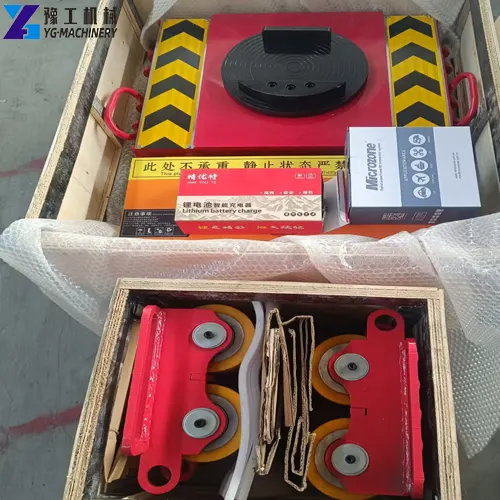

YG remote-controlled moving skates provide powered horizontal movement for heavy industrial loads. Wireless control lets the operator command forward, reverse, steering, and variable-speed movement without manually pushing the equipment. Our published range covers rated capacities from 10 to 100 tonnes.

They are not lifting devices. Loading, supporting, securing, and moving the equipment still require a suitable handling plan.

You do not need a complete technical specification to start a conversation. Send us an approximate load weight, a photograph of its base, and pictures of the route. We can identify the details needed for model selection.

Get a Quote for Your Specifications Now

YG Hot-sale Remote-Controlled Electric Moving Skate Technical Parameters

Parameters	YG-10	YG-20	YG-25	YG-30	YG-35	YG-50	YG-80
Load Capacity	10t	20t	25t	30t	35t	50t	80t
Motor Power	400W×2	750W×2	1000W×2	1000W×2	1500W×2	2000W×2	2500W×2
Battery Capacity	30Ah ternary lithium	60Ah ternary lithium	60Ah ternary lithium	60Ah ternary lithium	120Ah ternary lithium	120Ah ternary lithium	120Ah ternary lithium
Body Dimensions (mm)	600×500×140	620×620×155	620×620×155	700×700×185	750×750×185	910×800×185	910×800×200
Turntable Height	200mm	200mm	200mm	200mm	200mm	200mm	200mm
Turntable Diameter	250mm	250mm	250mm	320mm	320mm	320mm	320mm
Weight	85kg	137kg	150kg	235kg	240kg	260kg	280kg
Maximum Gradeability	15°	15°	15°	15°	15°	15°	15°
Road Speed	0-6m/min	0-6m/min	0-6m/min	0-6m/min	0-6m/min	0-6m/min	0-6m/min
Charging Voltage	110-260V	110-260V	110-260V	110-260V	110-260V	110-260V	110-260V
Range (Fully Loaded)	6-8h	4-6h	4-6h	4-6h	4-6h	4-6h	4-6h

Note: The turntable is 200mm in reference height across models. Charging voltage 110–260V is stated on the reference page; confirm battery chemistry, drive configuration, and gradeability with YG for the exact model before ordering.

Get a Quote for Your Specifications Now

Why Remote-Controlled Moving Skates Are Useful

1. Forward, backward, turning, and speed control – The operator controls direction and speed from the remote. This helps when the load must follow a planned route. The control range and response depend on the model and site conditions.
2. Low-speed movement for observation – The skates move at a low speed, which gives the operator and helpers time to observe clearance, floor condition, and load stability. Low speed does not remove the need for a spotter.
3. Battery drive reduces towing equipment – The skates use an onboard battery and motor. This can reduce the need for a tow vehicle in spaces where a tow vehicle cannot enter. The battery runtime and charging arrangement depend on the model.
4. Route planning around existing equipment – The skates can be used to plan a route through a workshop, around machines, and through doorways. The route must be checked for floor condition, clearances, and turning space.

Is It Difficult to Operate a Remote-Controlled Electric Tank-Style Transporter?

The operating steps are straightforward, but heavy load moving still requires planning and training.

1. Prepare the route and the load – Check the floor, the route, the doorways, and the turning space.
2. Position the load – Use suitable lifting or jacking tools to raise the equipment and place the skates underneath.
3. Confirm support and fixing – Check that the load sits stable on the skates and is secured if needed.
4. Function check – Check the remote, the battery, the wheels, and the emergency stop.
5. Low-speed trial – Move the load a short distance at low speed and check stability and clearance.
6. Complete the positioning – Move the load to the final position and lower it.

The remote interface is easy to understand. However, moving heavy loads still requires training, risk assessment, and a spotter where necessary.

Get a Quote for Your Specifications Now

Rental or Purchase: Which Option Fits Your Heavy-Moving Project?

Many project managers struggle with a basic commercial question: should they rent remote-controlled moving skates for one-off relocation work, or buy a set for long-term site use? There is no universal answer, and it depends heavily on your project schedule, job frequency, and internal operations budget.

Rental is suitable for single factory relocation, one-time equipment overhaul, or occasional heavy-machine moving tasks. It saves you upfront capital investment, and you do not need to arrange long-term storage, battery maintenance, or spare part management. However, rental suppliers often have limited model stocks, and you may face scheduling conflicts when multiple construction sites need the equipment at the same time. Transport fees and on-site operator training for rental units also add hidden costs that many buyers ignore at first.

Purchasing a YG remote-controlled moving skate set works better for companies with regular shifting work, such as machine shops, molding plants, or maintenance teams that reposition equipment every few months. Owning the equipment lets you arrange moving schedules freely without waiting for third-party availability. You can train your own operators gradually and get familiar with the machine’s limits for your regular loads. If your jobs cover a wide load range from 10t up to 100t, we can also discuss flexible combinations of drive units and idle skates to expand your working range. We do not push you to buy; we simply list these practical trade-offs so you can compare rental quotes and ownership costs before making your final decision.
