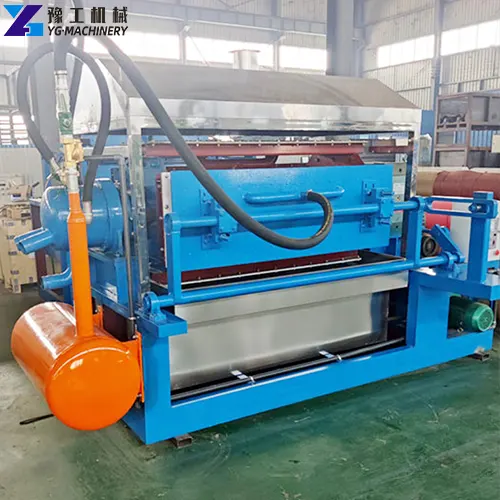

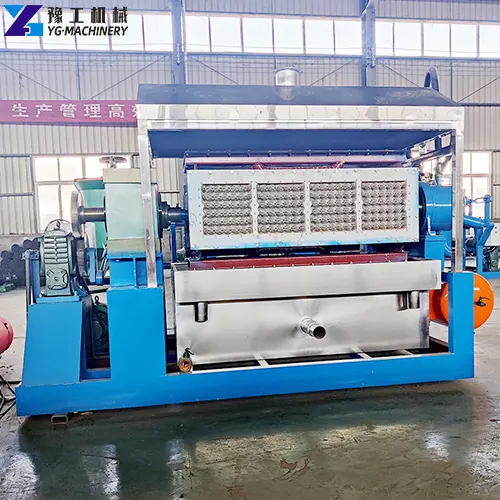

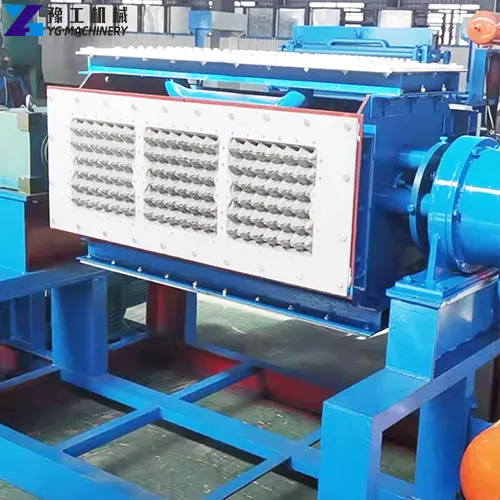

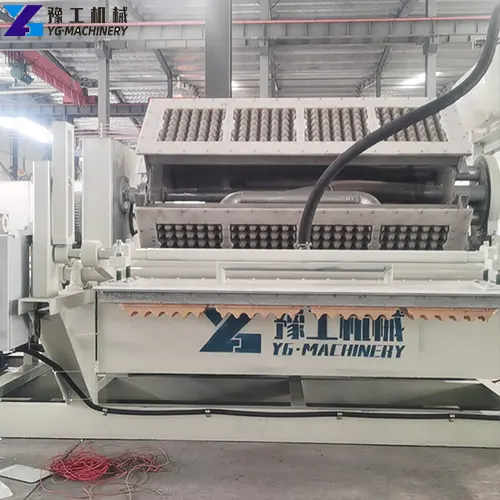

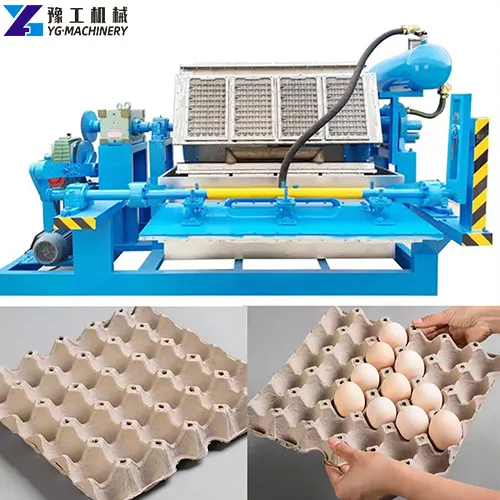

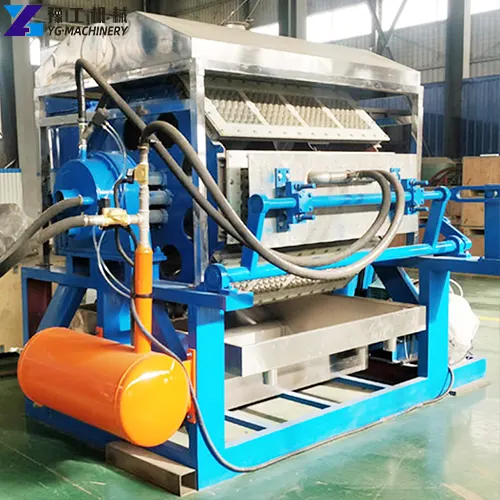

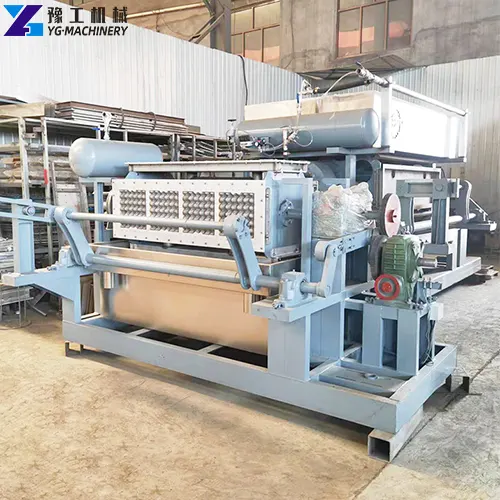

In the French poultry farming and food packaging industries, paper egg tray making machines are indispensable core equipment. With increasingly stringent EU environmental regulations and the implementation of policies banning single-use plastic packaging, the demand for paper egg trays has increased significantly due to their biodegradability and recyclability. Many French companies face problems such as high egg tray procurement costs, non-compliance with environmental standards, and unstable supply. The YG paper egg tray making machine precisely solves these problems. Paired with a complete egg tray production line, it enables one-stop production from waste paper to finished egg trays, meeting French environmental standards while significantly reducing packaging costs. By changing the molds, it can also produce shoe trays, fruit trays, etc., to meet different customer needs. Contact us now for more product information.
Get Factory Direct Pricing Today
Paper Egg Tray Making Machine Technical Parameter
| Model | YG-1*3 | YG-1*4 | YG-3*4 | YG-4*4 | YG-4*8 | YG-5*8 | YG-6*8 |
| Capacity (pcs/h) | 1000 | 1500 | 2500 | 3500 | 4500 | 5500 | 7000 |
| Forming Mould Quantity | 3 | 4 | 12 | 16 | 32 | 40 | 48 |
| Total Power (kW) | 40 | 40 | 50 | 60 | 130 | 140 | 186 |
| Electricity Consumption (kw/h) | 28 | 29 | 35 | 42 | 91 | 98 | 130 |
| Worker | 3-5 | 4-6 | 4-6 | 4-6 | 4-6 | 5-7 | 6-8 |
Get Factory Direct Pricing Today
A Real-World Case Study from a French Client: The Road to Success with 4,000 Egg Trays Per Hour
Case Background
Let’s turn our attention to central France. Mr. Jean-Pierre Martin runs a medium-sized poultry farm with approximately 80,000 laying hens.
Two years ago, Mr. Martin faced a dilemma: generating up to three tons of waste cardboard boxes and newspapers each week, causing him significant headaches regarding waste disposal costs. More importantly, he needed to find a better packaging solution for his eggs; plastic egg cartons were expensive and environmentally unfriendly.
Equipment Selection
After thorough research, Mr. Martin chose a paper egg tray making machine production line with a capacity of 4,000 trays per hour. The key parameters of this production line are as follows:
- Hourly capacity: 4000 egg trays
- Utilizes 4-sided rotary forming technology
- Equipped with a brick kiln drying system
- Semi-automatic control system
Mr. Martin told us, “What attracted me most at the time was that the machine’s capacity perfectly met my own needs, and the equipment investment was relatively reasonable. Most importantly, this egg tray making machine can process various waste paper materials from around my farm, with almost zero raw material costs.”
Lessons Learned
Mr. Martin’s case tells us that choosing the right egg tray-making machine is not as simple as just buying a piece of equipment. You need to consider:
- Is the local waste paper supply sufficient?
- How great is the demand in the target market?
- Does the equipment’s capacity match the scale of your business?
- Are after-sales service and technical support adequate?
For small and medium-sized farms, a capacity of 4000 trays per hour is an ideal choice. This capacity ensures a stable supply without causing sales pressure due to excessive capacity.
Get Factory Direct Pricing Today
How to Choose the Right Egg Tray Making Machine for You?
Capacity Matching
When choosing an egg tray making machine, the first thing to consider is your capacity requirements.
If you are a small business owner or rural cooperative:
- Recommended model: 1000 to 2000 eggs per hour.
- Factory requirements: Approximately 200 to 300 square meters.
- Labor requirements: 3 to 5 people.
- Drying method: Natural drying or simple drying.
If you are a medium-sized enterprise or have export needs:
- Recommended model: 4000 to 6000 eggs per hour.
- Factory requirements: Approximately 500 to 800 square meters.
- Labor requirements: 6 to 10 people.
- Drying method: Brick kiln drying or metal drying line.
If you are a large factory or industrial park:
- Recommended model: 8000 to 10000 eggs per hour.
- Factory requirements: Over 1000 square meters.
- Labor requirements: Over 10 people.
- Drying method: Fully automatic drying system.
Drying System Selection
Drying is one of the most critical and energy-intensive steps in egg tray production. There are currently three main drying methods:
- Natural Drying: Suitable for small workshops with warm climates and ample space. The advantage is almost no energy cost; the disadvantage is that it is greatly affected by weather and has a long drying time.
- Kiln Drying: This is a traditional drying method that uses fuel to heat air to dry the egg trays. Suitable for medium-scale production, it offers flexible energy options, using natural gas, diesel, or biomass fuel.
- Metal Drying Line: This is currently the most advanced drying method, employing multi-layer conveyor belts and circulating hot air. It boasts high drying efficiency and stable product quality. Although the initial investment is larger, the long-term operating costs are lower.
Equipment Quality Assessment
When purchasing an egg tray-making machine, how do you assess its quality? The following details are worth noting:
- Is the vacuum pump’s suction power sufficient (standard pressure should reach -0.05 to -0.07 MPa)?
- Are the molds made of high-quality aluminum alloy or stainless steel?
- Does the control system use a well-known brand of frequency converter and PLC?
- Has the entire machine passed ISO quality certification and CE safety certification?
- Does the manufacturer provide on-site installation, commissioning, and technical training?
Get Factory Direct Pricing Today
YG Egg Tray Machine Daily Maintenance and Troubleshooting
Daily Maintenance Points
- Daily Inspection: Before starting the machine, check that the forming mold is clean and free of residual pulp. Also, check the oil level in the vacuum pump and the condition of all connecting pipes.
- Weekly Maintenance: Lubricate the drive chain and bearings. Check the vacuum pump filter for blockages and promptly clean any water accumulation in the air compressor’s air tank.
- Monthly Maintenance: Calibrate the pulp concentration regulator to ensure the pulp concentration is consistently between 2% and 4%. Check the operating status of the electric heating elements to ensure uniform drying temperature.
Common Problems and Solutions
Problem 1: Egg trays are too soft or too wet.
This is usually due to insufficient vacuum suction or too low pulp concentration.
Solution: Check if the vacuum pump pressure is sufficient and confirm that the pulp concentration is within the normal range. If the vacuum pump filter is clogged, clean it promptly.
Problem 2: Egg trays stick to the mold or tear.
This indicates that the mold surface is not smooth enough or the air pressure is insufficient.
Solution: Clean the mold surface daily with a high-pressure water gun and check if the air compressor pressure reaches 0.4 to 0.6 MPa.
Problem 3: Abnormal noise during machine operation.
This may be caused by insufficient oil in the reducer or a loose chain.
Solution: Immediately stop the machine, check the reducer oil level, tighten any loose chains, and replace worn bearings.
Problem 4: Cracked egg trays after drying.
This is usually due to excessively high drying temperature or insufficient drying time.
Solution: Adjust the drying temperature to 150-180 degrees Celsius, ensuring each egg tray is dried for at least 15 minutes.
Get Factory Direct Pricing Today
A Professional Manufacturer of Egg Tray Machines — YG Machinery
If you’re looking for an environmentally friendly, efficient, and promising investment project, the YG paper egg tray making machine is definitely worth considering.
This machine not only helps you process waste paper and generate profits, but it also contributes to environmental protection. Whether you’re a small entrepreneur or a large investor, you can find a suitable solution in the egg tray production line.
Take the first step now!
Contact our professional team today for free equipment selection advice and a quote.
Alternatively, you can visit our product page for more details. We will recommend the most suitable egg crate manufacturing machine based on your production capacity needs, site conditions, and budget.
Don’t let this opportunity slip away. Inquire now and start your eco-friendly entrepreneurial journey!
Contact us for a free consultation
- One-on-one service from professional engineers.
- Free equipment selection advice.
- Factory visit.
- ROI analysis report.
Inquire now for a quote and turn your waste paper into treasure!
