A thermoplastic road marking machine, as the name suggests, is a device specifically designed for applying thermoplastic road markings. It is also commonly referred to as a “thermoplastic marking machine,” “thermoplastic marking vehicle,” or “road marking equipment.” Its core function is to heat solid thermoplastic paint to a molten state, and then apply it evenly and precisely to the road surface using scraping or spraying methods, forming clear, wear-resistant, and highly reflective road markings. For small and medium-sized construction companies, choosing a suitable set of road marking equipment can significantly improve construction efficiency and directly reduce labor costs for later maintenance. Contact YG now for more product information.
Get Factory Direct Pricing Today

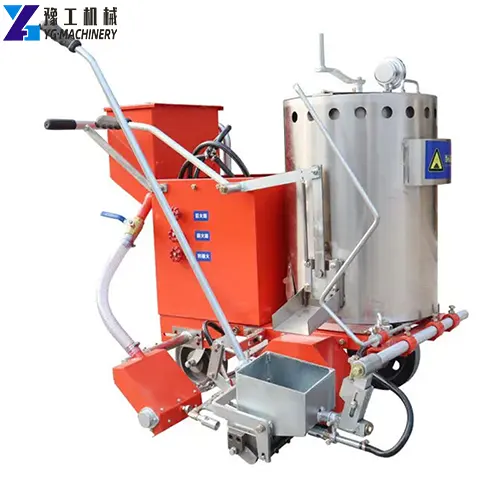

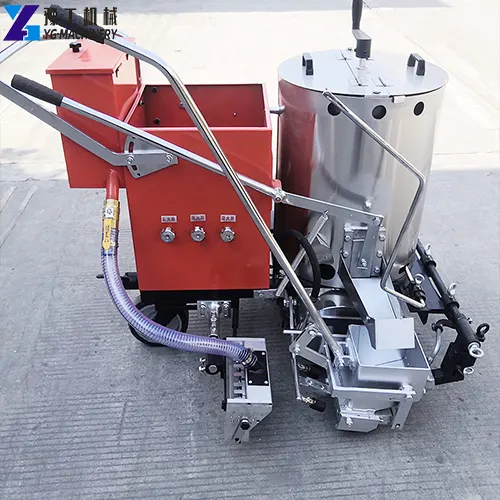

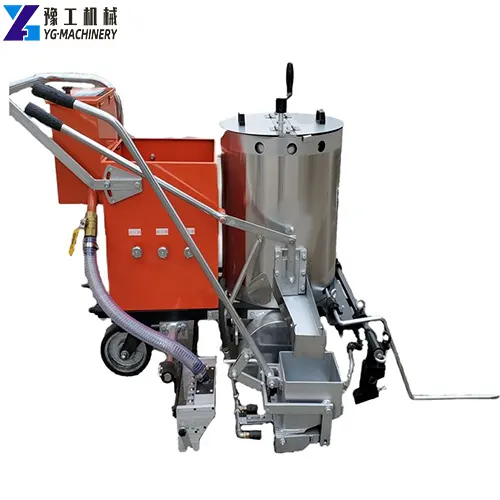

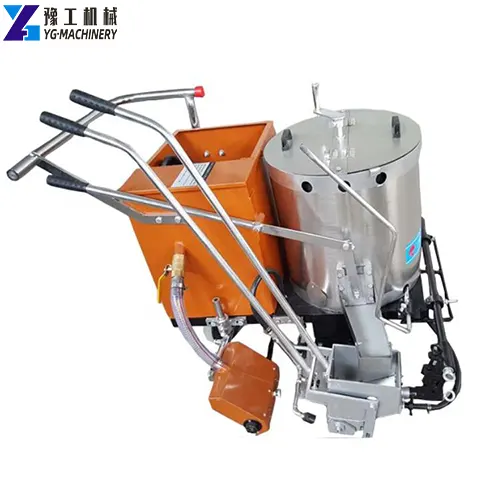

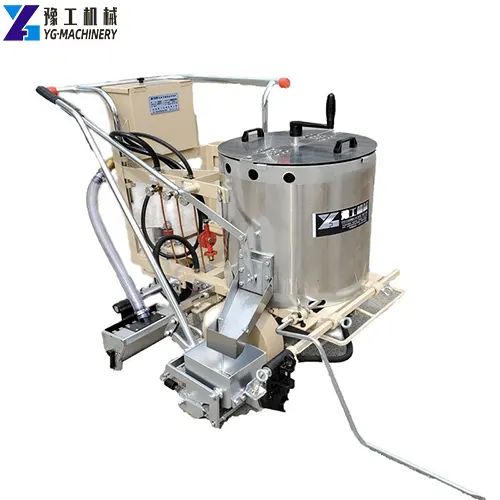

YG Thermoplastic Road Marking Machine
| Model | YG-CK360S | YG-CK380S |
| Thermoplastic Tank | synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs, 50-200mm | synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs, 50-200mm |
| Glass Bead Container | 10kg/box | 10kg/box |
| Adjustable glass bead spreader | Ensure the machine is moving in a straight line or turning freely on the curved road | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Rear Wheel Directional Device | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, and removable devices | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Brake | Using a drum brake, you can adjust the brake tension | Using a drum brake, you can adjust the brake tension |
| Marking width | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) |
| Battery Capacity | 15AH | 15AH |
| Battery Voltage | 48V lithium battery | 48V lithium battery |
| Driver Speed | 1-8km/hour | 1-8km/hour |
| Working Duration | The machine can mark road lines24 hours after charging the battery, 5 hours | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Dimensions | 1210X970X1070mm | 1200X970X1100mm |
| Net weight | 130kg | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, and removable devices |
Get Factory Direct Pricing Today
YG Hot-Melt Road Marking Machine Working Principle
- Paint Melting and Insulation: Solid hot-melt road marking paint is placed into the equipment’s insulated hopper and heated to 180-220℃ by a combustion system while continuously stirring. This ensures the paint is completely melted and in a fluid state, maintaining a constant temperature to prevent solidification or overheating and aging.
- Marking Application and Formation: The operator pushes the equipment forward at a constant speed along a pre-marked route, opens the marking hopper, and the molten paint is evenly applied to the road surface under gravity. The width and thickness of the marking are precisely controlled by the size and height of the marking hopper.
- Simultaneous Bead Spreading and Curing: Simultaneously with paint application, a glass bead spreading system evenly spreads reflective glass beads onto the uncooled paint surface. The glass beads are partially embedded in the paint, forming a reflective layer. The paint completely cures after naturally cooling on the road surface for 3-5 minutes, forming a strong, wear-resistant, and highly reflective traffic marking.
For large-area construction, a thermoplastic preheater can be used to pre-melt the paint, enabling continuous material supply and significantly improving construction efficiency.
8 Application of YG Hot-Melt Road Marking Machines
- Municipal Road Engineering: Construction of lane lines, stop lines, zebra crossings, directional arrows, and other road markings on main and secondary roads and branch roads in cities.
- Highway Engineering: Construction of center lines, edge lines, and median strips on highway mainlines, ramps, service areas, and toll stations.
- Parking Lot Engineering: Construction of parking space lines, directional arrows, no-parking zones, and fire lane markings in underground/ground parking lots of commercial complexes, residential areas, and industrial parks.
- Industrial Park Engineering: Construction of road markings and signs in factory areas, logistics channels, safety warning zones, and loading/unloading areas.
- Airport and Port Engineering: Construction of road markings on airport runways, taxiways, and parking positions; and port and dock operation areas and passageways.
- School and Residential Area Engineering: Construction of sidewalks, no-entry zones, speed reduction signs, and fire lane markings in schools and residential areas.
- Tunnel and Bridge Engineering: Construction of wear-resistant and anti-skid road markings, emergency lane markings, and edge line markings in highway tunnels and bridges.
- Driving school and racetrack construction: driving school training routes and test sites, racetrack track zoning, and safety warning markings construction.
Get Factory Direct Pricing Today
Case Study: Small Municipal Engineering Team in Thailand Purchases YG Hot-Melt Road Marking Machine
Client Background: Mr. Wan is the head of a small municipal engineering construction team in Bangkok, Thailand. His team consists of only 5 people and primarily undertakes road marking projects for urban secondary roads, communities, and small parking lots. Previously, they used simple equipment, which resulted in problems such as marking deviation, significant paint waste, high rework rates, and frequent equipment failures, often causing delays.
Problems Faced:
- Poor marking accuracy with simple equipment, resulting in straight lines deviating, uneven edges, and a project acceptance rate of only 70%, leading to frequent rework.
- Uneven paint heating results in significant waste and high construction costs.
- The equipment is bulky and cannot operate flexibly in confined community spaces, preventing them from accepting many orders.
- High equipment failure rate, high maintenance costs, and frequent project delays.
Solution: YG recommended a high-spec, push-type hot-melt road marking machine, paired with a small preheating kettle, and provided free operation training and construction guidance.
Usage Results: After the equipment was put into use, the accuracy of the road markings was significantly improved, the project acceptance rate was 100%, and there were no more rework issues; paint utilization increased by 30%, and construction costs were significantly reduced; the equipment is lightweight and flexible, allowing for smooth operation in confined spaces such as communities and underground parking lots, expanding the range of orders we can handle by 50%; the equipment operates stably with an extremely low failure rate, all projects were completed ahead of schedule, and team profits increased by more than 2 times.
Customer Review: “YG’s equipment completely solved all our previous pain points. It’s easy to operate, accurate in marking, and has a low failure rate. For a small construction team like ours, it offers extremely high cost-effectiveness and is the best choice for our road marking projects.”

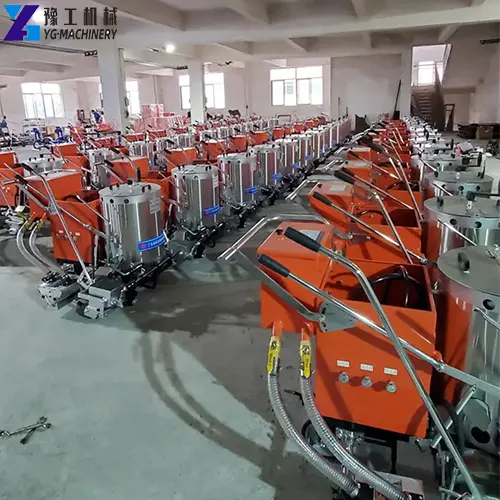

Thermoplastic Road Marking Machine Manufacturer – YG Machinery
The thermoplastic road marking machine is core equipment for small and medium-sized road marking construction companies. With its core advantages of high efficiency, durable markings, simple operation, and controllable costs, it perfectly solves the core pain points of low efficiency, high costs, poor quality, and difficult acceptance in road marking construction for small and medium-sized enterprises. YG, as a professional equipment manufacturer, directly supplies high-performance, cost-effective equipment and provides comprehensive pre-sales selection, sales training, and after-sales maintenance services. Customized road marking construction solutions can be provided based on the user’s construction scenario and budget.
Whether you are a small construction team just starting out or an established engineering company, YG thermoplastic road marking machines can help you improve construction efficiency, reduce operating costs, create high-quality projects, and quickly enhance your market competitiveness. Call our hotline now to get a free equipment selection plan, an accurate quote, and construction guidance; visit the YG official website to view more project cases and equipment details; or visit our offline showroom for on-site inspection and testing to start your new journey of efficient road marking construction!
