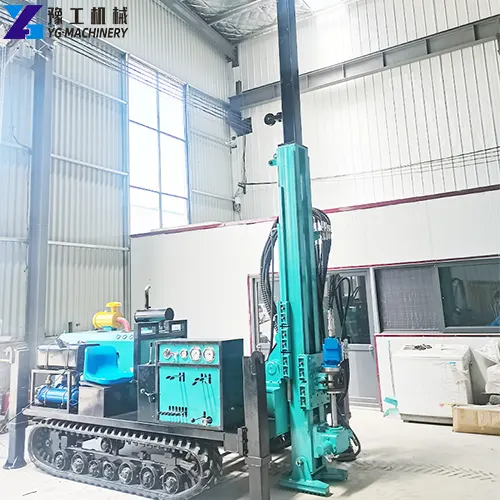

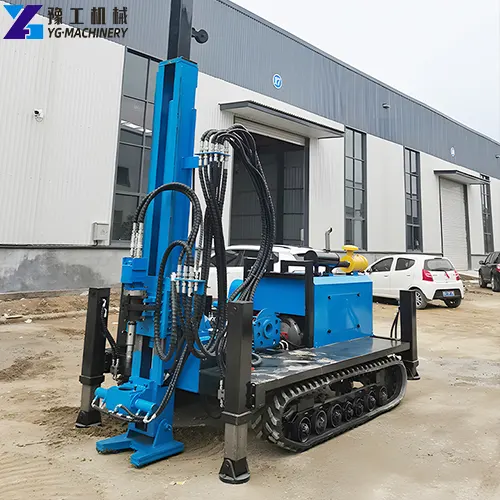

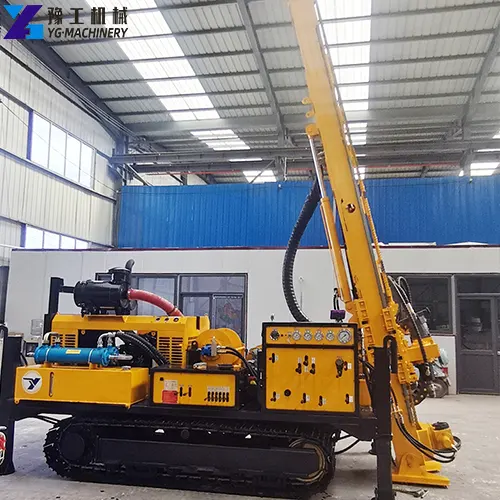

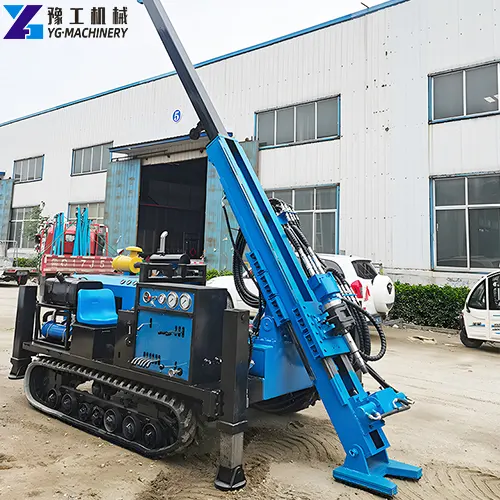

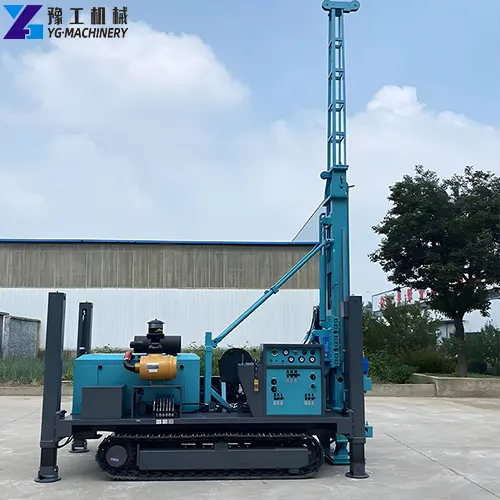

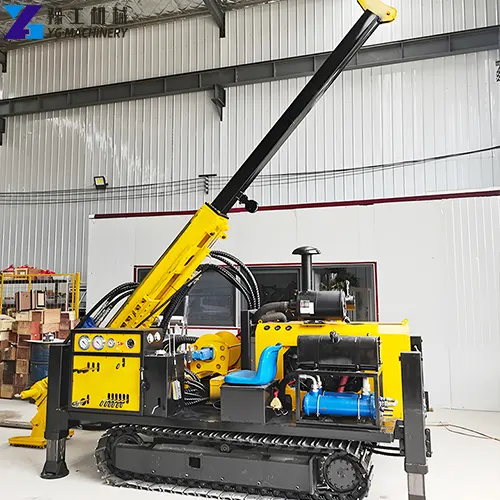

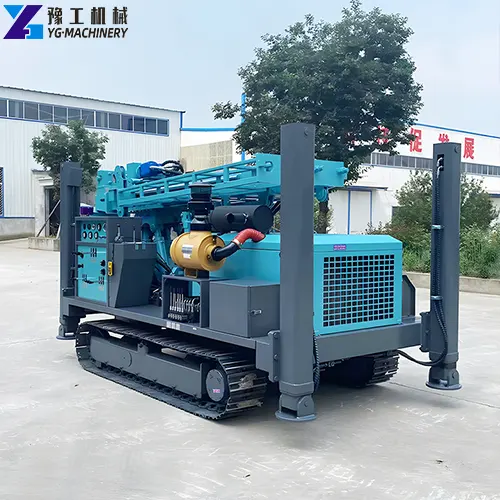

The fully hydraulic core exploration drilling rig, also known as a fully hydraulic core exploration drilling rig, is a high-efficiency drilling equipment integrating hydraulics, mechanics, and electrical systems. It is mainly used in solid mineral exploration, hydrogeological surveys, and engineering geological testing, and can achieve various drilling techniques such as diamond wireline coring and impact rotary drilling. Compared to traditional mechanical drilling rigs, it has core advantages such as full hydraulic drive, stepless speed regulation, ease of operation, flexible mobility, and high safety and reliability. As a mainstream model in the industry, the fully hydraulic core drilling rig adopts a load-sensitive hydraulic system with a large torque head and a wide speed range, accurately adapting to the drilling needs of different formations. The hydraulic core drilling rig uses hydraulic power as its core, ensuring smooth operation and a low failure rate, and can adapt to complex working conditions such as high temperatures, heavy rainfall, and rugged terrain. The NQ core drilling rig, as a commonly used specification, is compatible with NQ standard drill bits, with a core diameter of approximately 47.5mm, balancing efficiency and exploration accuracy, and is widely used in gold, copper, and nickel mineral exploration projects in the Philippines. Contact us now for more product information.

Get Factory Direct Pricing Today

Fully Hydraulic Core Exploration Drilling Rig Technical Parameter

Model	YGX-400	YGX-600	YGX-800	YGX-1000
Drilling Depth(M)	180-400-500	200-600-650	400-800-1000	500-1000-1100
Rated pressure(MPA)	21	21	25	28
Rated Flow(L/min)	168	192	260	300
Heat Dissipation Mode	Air cooling+water cooling
Engine Brand	Yuchai	Yuchai	Yuchai	Cummins
Rated power/speed	78kW/ 2400r/min	92kW/ 2400r/min	92kW/ 2400r/min	154kW/2400r/min
Drilling Angle(°)	0-90	45-90	45-90	45-90
Lifting Force(T)	12	16	24	30
Feed Force(T)	6	8	12	15
Hydraulic Mud pump flow	30-90（L/min）	30-90（L/min）	90-180（L/min）	90-180（L/min）
Hydraulic Mud pump power	4-7(MPA)	4-7(MPA)	4-7(MPA)	4-7(MPA)
Dimension	4000*1900*1800mm	4000*2000*1800mm	5500*2100*2000mm	6000*2200*2400mm
Weight	4.3T	4.5/5.5T	6.5T	7.5T

Get Factory Direct Pricing Today

Case Study 1: Metal Exploration Project for a Mining Company in Luzon, Philippines

Client Background: A medium-sized mining company in Luzon, Philippines, specializes in gold and copper exploration and mining. The project is located in a mountainous area with steep terrain and complex strata, including hard granite, fractured zones, and alternating layers of hard and soft rock. Previously, they used outdated mechanical drilling rigs, which resulted in low drilling efficiency, severe core fragmentation, frequent stuck drill bits, and difficulties in relocation, significantly delaying exploration progress. After comparing various options, the company purchased a YG fully hydraulic core exploration drilling rig in 2024, along with standard NQ core drilling rig tools, for deep resource exploration in the mining area.

Construction Challenges:

• Rugged terrain made equipment relocation difficult; traditional drilling rigs required multiple operators and took over two days.
• Complex and variable strata made drilling in hard rock difficult; fractured zones were prone to borehole collapse, resulting in a core recovery rate of less than 60%.
• High temperatures and heavy rainfall made the equipment susceptible to moisture damage and the hydraulic system prone to failure, affecting continuous operation.
• With a tight schedule, the project required the completion of 12 boreholes and a total drilling depth of 4500 meters within 3 months.

Solution:

• The YG technical team, based on project requirements, customized a construction solution for the client: A tracked, fully hydraulic core drilling rig was selected, equipped with wireless remote control, allowing for single-person operation and relocation, completing the move and positioning within a single day.
• A fully hydraulic core drilling rig load-sensitive system was employed, automatically adjusting torque and speed according to formation hardness, increasing force in hard rock and reducing speed in soft rock to protect core integrity.
• Using the NQ core drilling rig’s dedicated wireline coring tool, core extraction could be performed without lifting the drill bit, reducing the number of drill lifts and improving efficiency.
• The equipment was equipped with an independent temperature control and cooling system and a moisture-proof sealing device, adapting to the high temperature and humidity environment of the Philippines, ensuring continuous and trouble-free operation.
• On-site operation training and full technical support were provided, with engineers dispatched to the site for guidance and rapid resolution of construction problems.

Application Results:

• Significantly Improved Efficiency: The highest single-shift drilling footage reached 85 meters, with an average drilling footage 60% higher than traditional drilling rigs, completing all exploration tasks 25 days ahead of schedule.
• Excellent Core Sampling Quality: Core recovery rate remained consistently between 92% and 96%, obtaining complete mineral layer samples and providing accurate data for resource reserve assessment.
• Strong Adaptability: The tracked chassis easily handles steep terrain, reducing equipment transfer time from 2 days to 4 hours; the fully sealed design is impervious to rain and moisture, allowing for an average of 28 operating days per month.
• Significantly Reduced Costs: Reduced manpower by 3 people, failure rate decreased by 70%, maintenance costs decreased by 65%, and overall construction costs decreased by 40%.

Customer Testimonial:

“YG’s fully hydraulic core exploration drilling rig has completely solved our exploration problems! It’s powerful, efficient, and the NQ core drilling rig is perfectly matched with our drilling tools. It produces intact core samples, is easy to move, and operates stably even in complex mountainous areas. Compared to older equipment, it shortens the project time and significantly reduces costs. We have already planned to purchase more for future exploration projects!” — Exploration Manager, Luzon Mining Company, Philippines

Get Factory Direct Pricing Today

Case Study 2: Infrastructure Survey Project for an Engineering Survey Company in Cebu Province, Philippines

Client Background: An engineering survey company in Cebu Province, Philippines, undertook a large-scale infrastructure geological survey project for bridges and hydropower stations. The project covered various strata, including coastal soft soil, weathered rock, and gravel layers, with drilling depths ranging from 50 to 300 meters. High drilling verticality and accurate geological data were required. Previously, they used an outdated hydraulic core drilling rig, which suffered from unstable drilling, a tendency to tilt in soft holes, and low efficiency in deep holes, failing to meet the high-standard survey requirements. In early 2025, the company introduced a YG fully hydraulic core exploration drilling rig for simultaneous construction on multiple infrastructure projects.

Construction Challenges:

• The thick, soft soil layer in the coastal area made the boreholes prone to tilting and collapse, affecting the accuracy of the survey data.
• Deep hole drilling was challenging; the outdated equipment lacked sufficient torque and had slow progress, requiring more than 7 days to drill a single 300-meter hole.
• The projects were geographically dispersed and had tight schedules, necessitating rapid equipment relocation and continuous operation to shorten the overall cycle.
• The coastal salt spray environment makes equipment susceptible to corrosion, requiring high durability and maintainability.

Solution:

• A high-torque, fully hydraulic core exploration drilling rig is selected, with a power head torque of 8000 N·m, providing ample power for deep hole drilling.
• Equipped with a hydraulic automatic centering and verticality monitoring system, it accurately controls the borehole inclination in soft soil layers, with a verticality error of ≤0.5%.
• The modular design allows for easy disassembly and, with a dedicated trailer, cross-project relocation takes only one day.
• Key components are made of corrosion-resistant materials, and the hydraulic system is equipped with salt spray-proof seals, simplifying daily maintenance and adapting to the coastal environment.
• Simultaneous technical support is provided for multiple projects, and a remote fault diagnosis system is established for rapid response to construction issues.

Application Results:

• Highly efficient and stable deep hole drilling: The construction cycle for 300-meter deep holes is shortened to 3 days, with sufficient torque, smooth drilling, and no hole collapse or stuck drill.
• Achieving exploration accuracy: Precise and controllable borehole verticality, intact core samples, and accurate geological data ensure successful acceptance by the client.
• Convenient and efficient relocation: Modular design + dedicated trailer enables rapid relocation across projects, allowing simultaneous progress on three projects and reducing overall project timelines by 40%.
• Corrosion-resistant and durable: After 8 months of operation in salt spray environments, there was no significant corrosion on the equipment’s exterior or core components, resulting in low maintenance costs.

Customer Testimonials:

“The YG fully hydraulic core exploration drilling rig far exceeded our expectations! It’s more stable and efficient than traditional hydraulic core drilling rigs, enabling faster and more precise deep-hole drilling, and it’s durable even in coastal salt spray environments. Convenient relocation and simple maintenance have helped us efficiently complete multiple infrastructure exploration projects, making it an ideal piece of equipment for engineering exploration!” — General Manager, Cebu Engineering Survey Company, Philippines

Get Factory Direct Pricing Today

Why Are YG Fully Hydraulic Core Drilling Rigs so Effective in the Philippines?

1. Overcoming Geological Limitations: Adaptable to complex formations such as hard rock, fractured zones, and soft soil, the fully hydraulic core drilling rig’s automatic adjustment performance solves various drilling challenges.
2. Significant Cost Reduction and Efficiency Improvement: Efficiency is increased by 50%-80%, labor and maintenance costs are reduced by over 40%, shortening construction periods and increasing project profits.
3. Strong Environmental Adaptability: The tracked chassis adapts to rugged terrain, and the fully sealed, corrosion-resistant design is suitable for high-temperature, high-humidity, and salt spray environments, making it suitable for construction throughout the Philippines.
4. Accurate and Reliable Data: High core recovery rate and high drilling accuracy provide precise geological data for mineral assessment and infrastructure design.
5. Comprehensive After-Sales Support: Direct supply from the manufacturer, providing full-process support including selection, training, and after-sales service. Overseas customers enjoy remote technical guidance services, and on-site construction assistance is available in special circumstances.

Fully Hydraulic Core Exploration Drilling Rig Manufacturer – YG Machinery

The fully hydraulic core exploration drilling rig, with its core advantages of high efficiency, stability, and strong adaptability, has become the mainstream equipment in the field of mineral exploration and engineering surveying in the Philippines. Two real-world customer case studies fully demonstrate that, whether in complex mountainous mineral exploration or coastal infrastructure surveying, this equipment, combined with supporting solutions such as the NQ core drilling rig and SPT, can efficiently solve construction challenges, achieving cost reduction, efficiency improvement, and accurate exploration.

As a professional drilling equipment manufacturer, YG focuses on the research, development, and production of fully hydraulic core drilling rigs, and its products are exported to more than 30 countries and regions worldwide, including the Philippines. We can provide customized equipment selection, construction solutions, operation training, and full after-sales support according to customer project needs.

Contact us now to get a precise quote for the fully hydraulic core exploration drilling rig, a Philippines-specific construction solution, and customer case details. Unlock a new experience of efficient exploration and help your projects advance efficiently and be successfully implemented!
