What is a Concrete Leveling Machine?
As the name suggests, a “concrete floor leveling machine” is a piece of mechanical equipment used for the spreading, vibrating, leveling, screeding, and compaction of concrete slabs. It is also commonly referred to as a “concrete laser screed,” “laser paver,” or “automatic concrete leveling machine.” Its primary function is to level the surface of freshly poured concrete to the precise design elevation—while simultaneously enhancing its density—through the use of precisely controlled vibration and screeding mechanisms. This process is critical for ensuring both the long-term performance and aesthetic appeal of the finished floor. For companies seeking to boost their project competitiveness and minimize future maintenance costs, acquiring a concrete laser screed represents a significant breakthrough. Contact us today to learn more about our products.
Get Factory Direct Pricing Today
Concrete Floor Leveling Machine Technical Parameter
| Model | YGJX31 | YGJX32 | YGJX33 | YGJX34 |
| Engine | ||||
| Model | Generator set | GX390 Electric start | GX390 Electric start | GX390 Electric start |
| Power | 2.0kW | 13hp/3600rpm | 13hp/3600rpm | 13hp/3600rpm |
| Fuel tank (L) | 14.5 | 6.5 | 6.5 | 6.5 |
| Running device | ||||
| Drive | Motor | Hydraulic motor | Hydraulic motor | Hydraulic motor |
| Running mode | Infinitely variable speed | Handle control, stepless speed | Handle control, stepless speed | Handle control, stepless speed |
| Running speed(m/min) | 0-36 | 0-45 | 0-65 | 0-45 |
| Suggest working speed(m/min) | 5 | 5 | 5 | 5 |

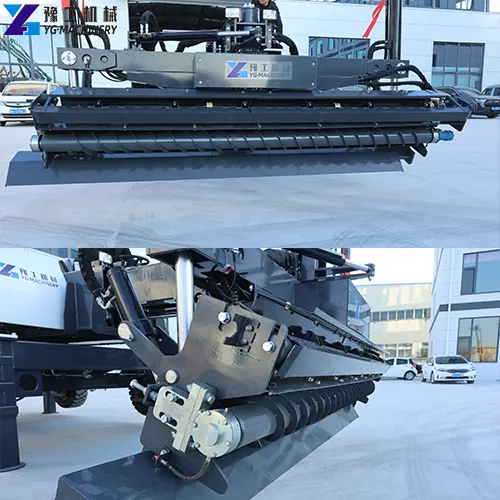

| Screed head | ||||
| Type | Self-leveling | Electric control, self-leveling | Self-leveling | Hydraulic control, self-leveling |
| Width | 2500mm | 2500mm | 2500mm | 2500mm |
| Exciting force | 500N | 500N | 500N | 500N |
| Vibration frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| Laser control system | ||||
| Control type | Microcomputer laser scan | Microcomputer laser scan | Microcomputer laser scan | Microcomputer control |
| Operation mode | Walk-behind | Walk-behind | Walk-behind | Walk-behind |
| Forward and reverse | Handgrip control, stepless speed-walking | Hydraulic control | Handgrip control, stepless speed-walking | Hydraulic control |
| Size and weight | ||||
| Working size(mm) | 2758*2622*1980 | 2740×2659×1980 | 2578×2643×1980 | 2780*2622*1980 |
| Weight(kg) | 295 | 365 | 380 | 410 |
Get Factory Direct Pricing Today
7 YG Concrete Floor Leveling Machine Core Features
- Precise Laser Positioning for Outstanding Leveling Accuracy: Equipped with an imported laser positioning system, the positioning accuracy is ≤±2mm/3m, enabling overall floor leveling and avoiding localized unevenness. The flatness far surpasses manual leveling and ordinary leveling equipment, making it suitable for scenarios requiring high floor precision.
- Fully Automated Operation for Significantly Improved Efficiency: Utilizing an intelligent control system, it achieves fully automated operation, integrating paving, vibration, leveling, and movement. No manual leveling is required, increasing work efficiency by over 60% compared to traditional manual leveling. It can complete 800-1500㎡ square feet of floor leveling per day, significantly shortening the construction cycle.
- Multi-Level Adjustment for Diverse Needs: The paving thickness is infinitely adjustable between 30-150mm, the vibration frequency is adjustable between 50-100Hz, and the walking speed is adjustable between 0.5-2km/h. It can adapt to the leveling needs of various scenarios, such as industrial plants, residential floors, and warehousing logistics, offering strong versatility.
- High density, ensuring high-quality concrete: The high-frequency vibrator quickly removes air bubbles from the concrete, increasing its density by over 20%. This prevents problems such as sandblasting, peeling, and cracking, and increases the compressive strength to C30 or higher, extending the lifespan of the concrete surface.
- Easy operation, suitable for all types of construction workers: Equipped with a visual human-machine interface, parameter adjustments are simple. Ordinary workers can operate the machine independently after two days of training, eliminating the need for specialized technicians and addressing the pain points of small and medium-sized enterprises facing difficulties in recruiting and hiring skilled workers. It also supports manual/automatic dual-mode switching, adapting to complex construction scenarios.
- Lightweight design, flexible relocation, and operation: The machine features a lightweight structural design, weighing 12% less than similar products. This allows for flexible movement. The two-wheeled model can easily access confined spaces (such as indoor decoration and small factories), while the four-wheeled model is suitable for large-area outdoor operations. The rubber wheels prevent damage to unformed concrete, protecting the completed work.

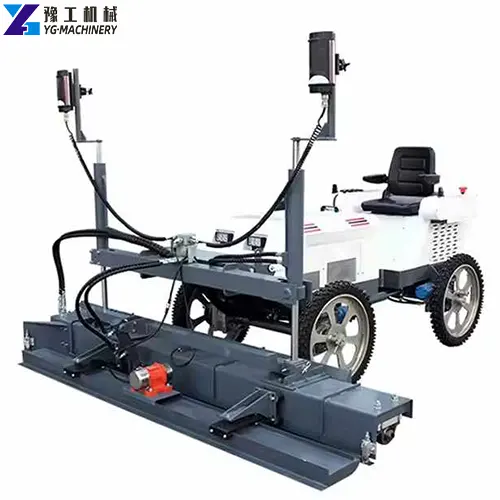

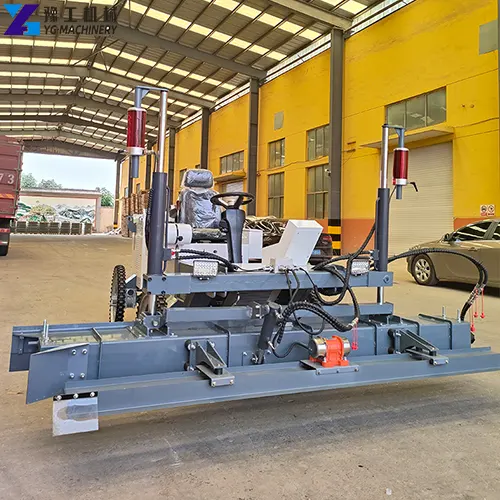

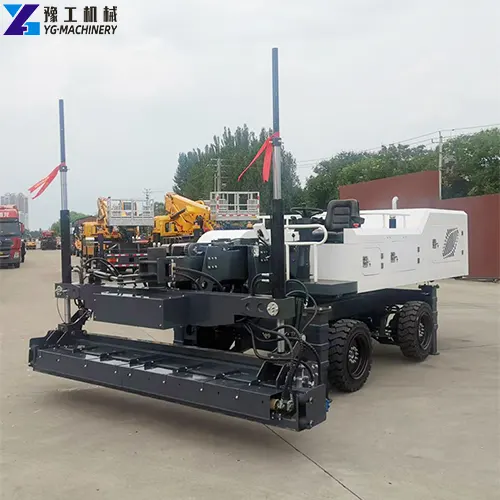

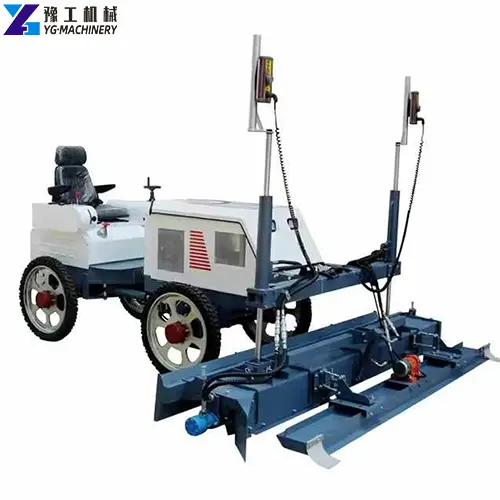

- Multiple configurations available to suit diverse needs: Supports 2-wheel and 4-wheel walking systems as needed. 2-wheel models emphasize flexibility, while 4-wheel models emphasize stability. Some high-end models can be equipped with telescopic arms, and the working radius can be flexibly adjusted to easily cover difficult-to-operate areas such as corners and around walls, further improving operational flexibility and adaptability.
Get Factory Direct Pricing Today
Case Study: YG Concrete Laser Screed Used for Flooring Construction at a French Commercial Complex
Client Background: A French engineering firm undertaking a flooring construction project for a commercial complex—comprising a shopping mall, office buildings, and an underground parking garage. The project demanded high floor flatness and aesthetic quality, requiring both large-area leveling and precise leveling in tight corners. Additionally, the equipment needed to be suitable for low-noise indoor construction environments while simultaneously boosting operational efficiency.
Challenges Faced:
- Complex Project Environment: The site featured a mix of vast open floor areas and confined corners; a single type of machine could not adequately address the diverse requirements of both scenarios.
- Indoor Construction Constraints: Indoor operations mandated low noise levels and zero emissions to prevent any negative impact on the surrounding environment.
- High Flatness Standards: The finished floor surface needed to be suitable for the subsequent installation of floor tiles and epoxy coatings, necessitating extremely high standards of flatness and precision.
Solution: YG recommended a high-specification concrete floor leveling machine. This solution enabled fully automated operation: large open areas were leveled using an automated screeding machine, while the YG unit was deployed to perform precise leveling in the corner and edge zones. Featuring an electric-drive design, the machine offered zero emissions and low noise levels (≤55 dB), making it ideally suited for indoor construction environments. Equipped with an imported laser system, it ensured consistent flatness across the entire floor surface. Furthermore, when paired with auxiliary tools, the machine facilitated secondary surface finishing, significantly enhancing the aesthetic appeal of the flooring.
Results: Construction efficiency improved by 50%, allowing the team to complete the 15,000 m² flooring project in just six days. Floor flatness deviation was successfully controlled within a tolerance of ±1.5 mm per 3 meters, meeting the strict requirements for subsequent tile and epoxy coating installations while achieving the desired aesthetic standards. The low-noise operation garnered approval from local regulatory authorities. The equipment operated continuously for one month without a single malfunction, demonstrating exceptional durability, and the project successfully passed final acceptance inspection.
Client Testimonial: “YG’s concrete floor leveling machine features a professional design that integrates seamlessly with our automated screeding equipment. It delivers exceptional precision and efficiency, effectively meeting both the environmental requirements for indoor construction and our high standards for floor quality. With its outstanding cost-performance ratio, we look forward to a long-term partnership with YG.”
Get Factory Direct Pricing Today
Frequently Asked Questions about Concrete Laser Screed Machines
A1: YG’s concrete floor leveling machines are capable of processing concrete with various slump values and aggregate ratios, including standard concrete, steel-fiber reinforced concrete, self-leveling concrete, and more. For specific application ranges, please refer to the equipment manual or consult our technical support team.
A2: The primary advantages of an automatic concrete leveling machine include high construction efficiency, superior flatness precision, reduced physical labor, and more consistent construction quality. It significantly minimizes manual intervention and reduces human error, making it particularly well-suited for large-scale flooring projects requiring high-standard finishes.
A3: YG offers comprehensive after-sales services, including equipment installation and commissioning, operator training, routine maintenance, spare parts supply, and 24-hour technical support, ensuring our customers’ equipment operates without interruption. We are committed to providing our customers with full lifecycle support for their equipment.
A4: While operating a laser screed machine is relatively straightforward, it still requires a professionally trained operator. Operators must be familiar with the equipment’s performance capabilities, control systems, and standard concrete construction procedures to ensure both construction quality and safety.
A5: The choice between a 2-wheel and a 4-wheel drive concrete floor leveling machine depends primarily on the specific characteristics of the construction site. 2-wheel drive models are typically lighter and more agile, making them suitable for smaller sites, projects requiring frequent relocation, or sites with lower ground load-bearing requirements. Conversely, 4-wheel drive models offer greater power and stability, making them ideal for large-scale, complex sites—including those with uneven terrain or moderate slopes—where they are better equipped to handle challenging conditions.

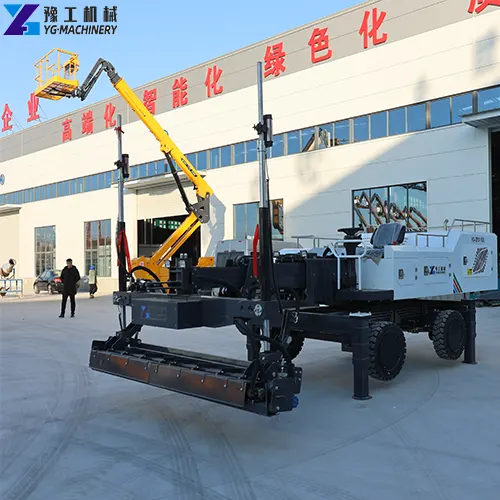

A6: A concrete laser screed machine equipped with a telescopic boom significantly expands the coverage area achievable in a single pass. This reduces the frequency of equipment repositioning, thereby substantially boosting construction efficiency, minimizing the number of construction joints, and enhancing the overall integrity and flatness of the finished floor. For large-scale, high-standard flooring projects—although the initial investment may be substantial—the resulting improvements in efficiency, savings on labor costs, and superior construction quality typically yield a higher return on investment, making them a worthwhile investment to consider.
