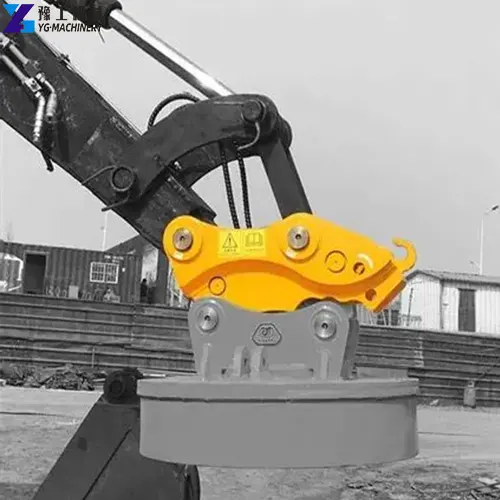

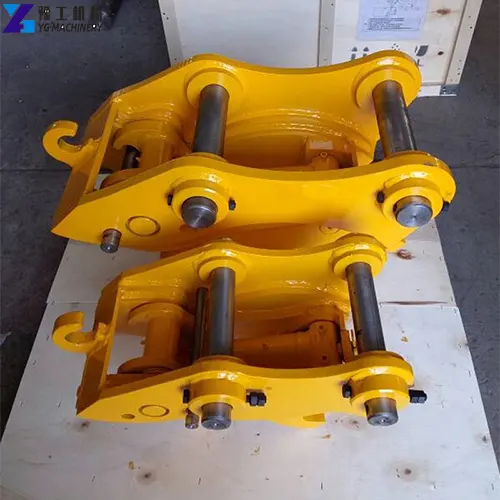

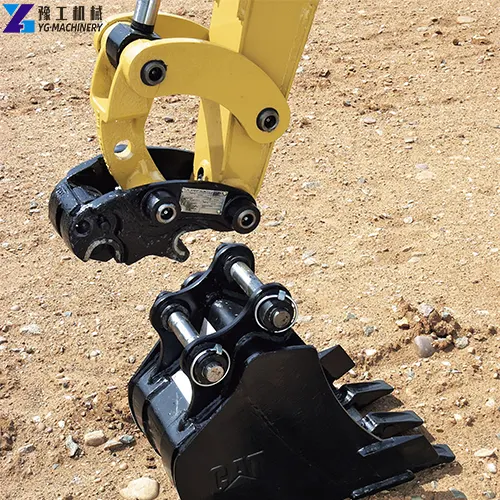

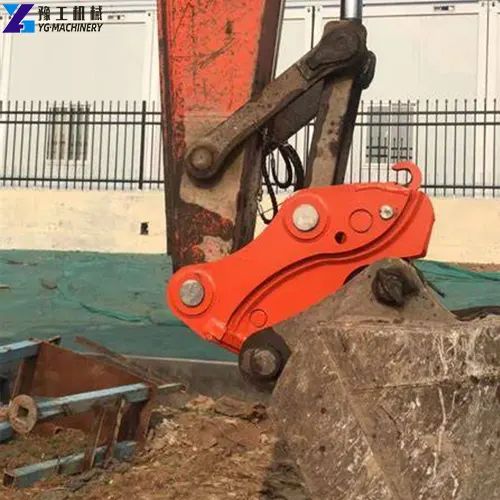

Excavator quick couplers, also commonly known as excavator quick connectors, hydraulic quick couplers, or excavator quick-change devices, are referred to as “quick couplers” in the industry. Their core function is to enable the rapid connection and disconnection of excavator attachments through hydraulic control, eliminating the need for manual bolt removal. This significantly reduces attachment switching time and is compatible with various excavator attachments such as buckets, hydraulic breakers, pile breakers, and excavator hydraulic shears. They are widely used in construction, mining, and municipal engineering projects. Compared to traditional manual connection methods, quick couplers improve switching efficiency by over 80% and offer safer operation, effectively reducing labor intensity. YG specializes in the research and development of construction machinery attachments, and its excavator quick couplers are compatible with multi-ton excavators and available in various models, providing solutions for construction teams to improve operational efficiency and reduce labor costs. If you are interested, please contact us now.
Get Factory Direct Pricing Today
YG Excavator Quick Coupler Parameter
| Item/Model | Unit | YGMINI | YG45 | YG50/55 | YG60/65 | YG70/80 | YG90 | YG100/110 |
| Suitable Excavator | ton | 1.5-4 | 4-7 | 5-8 | 9-19 | 17-23 | 23-30 | 33-45 |
| Weight | kg | 25 | 50-60 | 80 | 120-130 | 280-290 | 420-430 | 450-580 |
| Length | mm | 388 | 534-545 | 600 | 765 | 924-944 | 983-1050 | 1006-1473 |
| Height | mm | 246 | 307 | 310 | 388 | 492 | 574 | 558-610 |
| Width | mm | 175 | 258-263 | 270-280 | 353-436 | 449-483 | 543-568 | 606-663 |
| Pin-to-Pin Center Distance | mm | 80-150 | 230-270 | 290-360 | 380-420 | 460-480 | 473-540 | 550-620 |
| Forearm Open Width | mm | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 | 416-469 |
| Retractable Distance of Oil Cylinder | mm | 170-206 | 205-275 | 340-450 | 340-486 | 256-390 | 413-590 | 520-590 |
| Top-to-Bottom Pin Distance | mm | 159 | 195 | 195 | 220 | 275 | 300 | 360 |
| Pin Diameter | mm | 25-40 | 45-50 | 50-55 | 60-70 | 70-80 | 80-90 | 90-120 |
| Working Pressure | bar | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 |
| Working Flow | Ipm | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
Get Factory Direct Pricing Today
Features and Functions of YG Excavator Quick Coupler
- Hydraulic Automatic Switching, Outstanding Efficiency: Utilizing an imported hydraulic control system, attachment switching is fully automated, requiring no manual intervention. Each switch takes only 30-60 seconds, improving efficiency by over 80% compared to traditional manual switching, significantly saving operating time.
- Multi-Model Compatibility, Strong Adaptability: Covering both standard and mini excavator quick couplers, it is compatible with 1-45 ton excavators and a full range of attachments, including buckets, hydraulic breakers, pile breakers, and excavator hydraulic shears. The standardized interface design allows for compatibility with mainstream excavator brands without modification.
- Dual Safety Protection, Stable and Reliable: Equipped with a hydraulic locking and mechanical locking dual safety device, the attachment is automatically locked in case of hydraulic system failure, preventing detachment accidents; the main frame is made of high-strength alloy material, capable of withstanding heavy loads and impacts, ensuring strong operational stability and low failure rate.
- Intelligent Control, Convenient Operation: Supports both manual button and excavator pilot valve control, allowing operators to complete attachment switching from within the cab without leaving the vehicle; equipped with a pressure monitoring device, it displays hydraulic system pressure in real time, facilitating timely troubleshooting.
- Corrosion-Resistant and Wear-Resistant, Long Lifespan: Triple anti-corrosion treatment process combined with wear-resistant bushings and sealing components makes it suitable for humid, dusty, and highly corrosive construction environments. The equipment has a normal service life of over 5000 hours, and wear parts can be replaced individually, reducing maintenance costs.

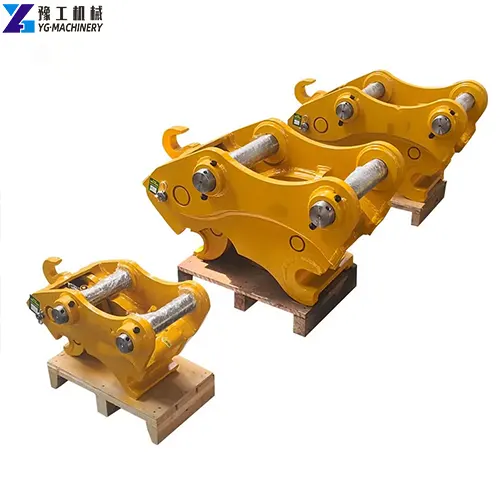

- Comprehensive Coverage of Excavator Quick Coupler Types: Offers various types, including hydraulic automatic, mechanical manual, and mini types, allowing customers to choose the appropriate model based on excavator tonnage, operating scenarios, and budget requirements, meeting diverse construction needs.
- Customized Adaptation, Functional Expansion: Interface dimensions and locking force parameters can be customized according to the customer’s specific needs to adapt to non-standard attachments; supports the addition of a pressure alarm device to enhance operational safety.
Get Factory Direct Pricing Today
8 Application Areas of YG Excavator Quick Couplers
- Construction Engineering: Compatible with excavators for switching between buckets and hydraulic breakers, used for foundation excavation, foundation breaking, building demolition, and other operations, improving the efficiency of multi-process alternating operations.
- Mining Operations: Used with pile breakers and heavy-duty buckets to achieve rock breaking and ore loading in mines, allowing for quick attachment changes to adapt to different mining processes and improve mining efficiency.
- Municipal Renovation Projects: Compatible with excavator hydraulic shears and small buckets, used for road widening, pipeline laying, old building demolition, waste removal, and other operations, flexibly adapting to diverse working conditions.
- Road and Bridge Engineering: Switching between hydraulic breakers and rock drills, used for road maintenance, bridge demolition, roadbed breaking, and other operations, ensuring construction progress and operational safety.

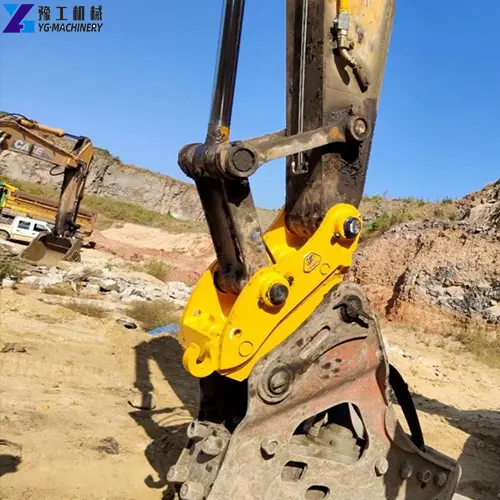

- Landscaping Engineering: Mini excavator quick couplers are compatible with small excavators, switching between small buckets and transplanting shovels, used for plant transplantation, terrain shaping, river dredging, and other fine-grained operations.
- Water Conservancy and Hydropower Engineering: Compatible with underwater buckets and hydraulic breakers, used for dam reinforcement, river dredging, reservoir desilting, and other operations, with excellent sealing performance, suitable for humid environments.
- Demolition Engineering: Used with excavator hydraulic shears and hydraulic breakers for the demolition of buildings such as factories and bridges, allowing for quick attachment changes to achieve coordinated shearing and breaking operations.
- Agricultural Planting Engineering: Compatible with small excavators and specialized attachments, used for land reclamation, ditch excavation, greenhouse construction, and other operations, improving the efficiency of agricultural engineering operations.
Get Factory Direct Pricing Today
Frequently Asked Questions about YG Excavator Attachment Quick Couplers
A: It fits most mainstream excavator brands on the market. The interface uses a standardized design, and both mini excavator quick couplers and heavy-duty types support customized interfaces, allowing for compatibility without significant modifications.
A: Choose based on the excavator’s tonnage: 1-6 tons for mini type, 10-25 tons for standard type, and 30 tons and above for heavy-duty type; choose between hydraulic automatic type (high efficiency) or mechanical manual type (economical) based on your work requirements.
A: The hydraulic type uses a hydraulic cylinder to drive the locking pin, allowing the operator to operate without getting out of the cab, resulting in higher efficiency and safety, but at a higher cost. The mechanical type requires manual operation of the screw or pin for locking, which is less expensive but takes more time to change and requires manual assistance.

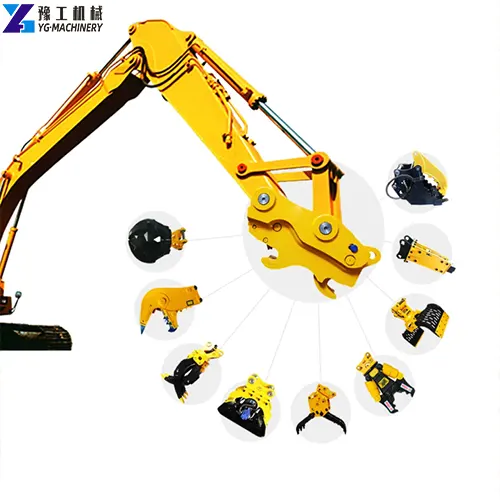

A: You can connect almost all types of excavator attachments, including hydraulic breakers, hydraulic shears, log grapples, rippers, compactors, and even specialized tools like pile breakers, enabling multi-purpose use of a single machine.
A: The three most important points are: 1. The exact excavator model and tonnage; 2. The pin size and spacing of your existing or planned attachments; 3. Your preferred locking method (hydraulic preferred). Provide this information to YG, and we will help you select the precise model.
A: Maintenance is simple. The main tasks include: daily lubrication of all pins and bushings; regular inspection of locking pin wear and hydraulic oil leaks; and replacement of wear-resistant bushings every few hundred hours, depending on usage frequency. We provide detailed maintenance guidelines.
