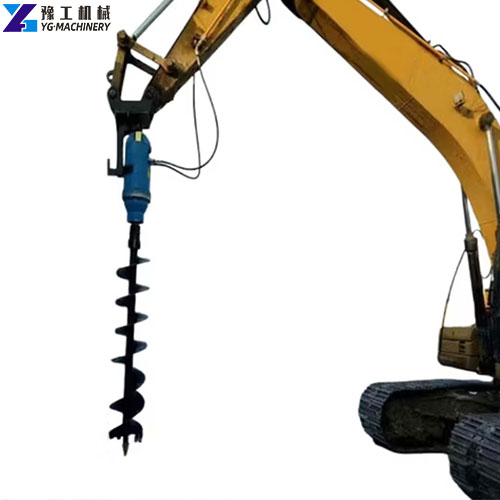

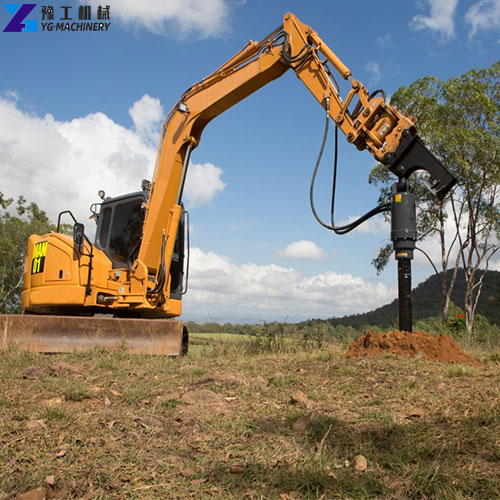

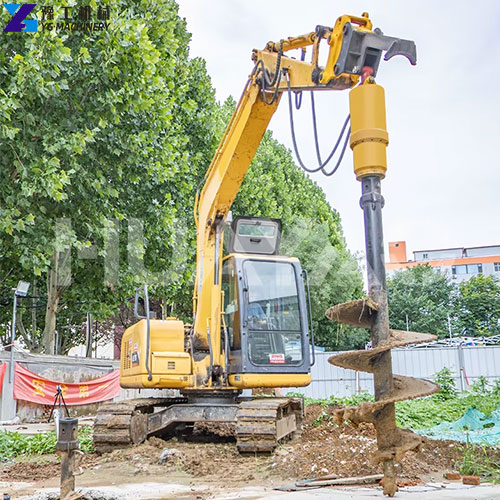

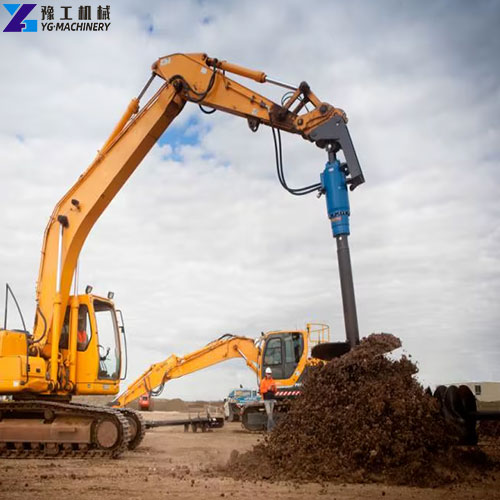

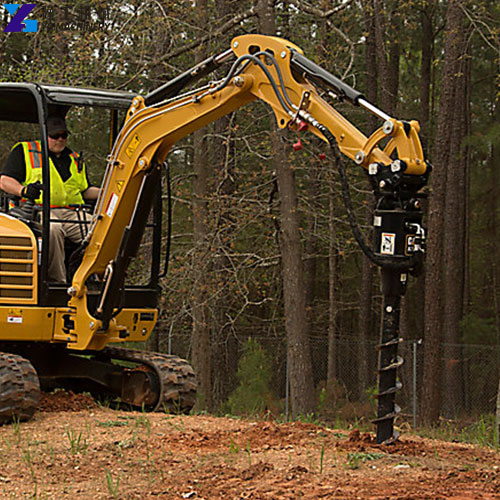

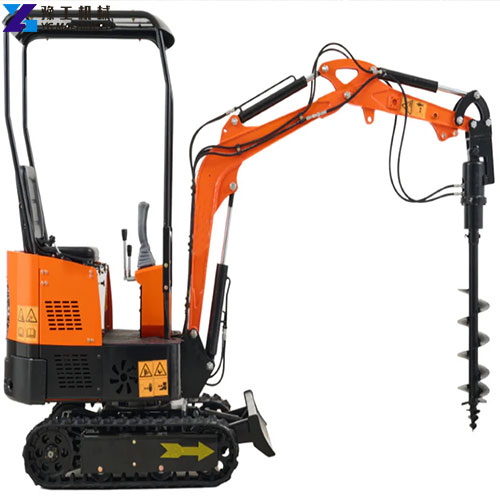

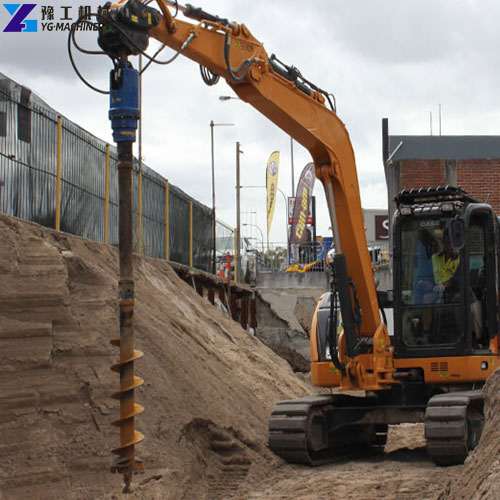

An excavator auger attachment, commonly known as an excavator auger drill or power drill, is a hydraulically powered attachment mounted on the end of an excavator’s boom. Its core working principle is to utilize the high-pressure oil from the excavator’s hydraulic pump to drive a motor, which, after torque amplification through a planetary gear reducer, rotates a helical drill rod to cut and remove soil from the ground. Depending on the scale of the operation, this attachment can be subdivided into post-hole augers for excavators suitable for landscaping and fencing, and heavy-duty drills for large-scale infrastructure projects. In modern modular construction processes, the auger drill typically works in conjunction with various attachments: for example, using a demolition shear to clear ground obstacles, then quickly switching to drilling mode using an excavator quick hitch for piling, and if extremely hard soil is encountered, switching to a mini excavator ripper for localized soil loosening. This highly integrated operational logic makes the excavator auger attachment an indispensable tool in municipal construction, photovoltaic power plant installation, and agricultural tree planting. Contact YG now for more product information!
Get Factory Direct Pricing Today
YG Excavator Auger Attachment Parameter
| Model | YGMINI | YG1500 | YG2000 | YG2500 | YG4000 | YG4500 | YG5000 |
| Applicable(T) | 0.8-2T | 1-2 | 1.5-3 | 1.5-3 | 2-4 | 2-4 | 3-6 |
| Torque Range(Nm) | 305-1175 | 545-1580 | 656-2270 | 855-2510 | 1290-4580 | 1290-4580 | 1608-4890 |
| Oil pressure(bar) | 60-200 | 60-200 | 60-200 | 60-200 | 60-210 | 60-210 | 60-210 |
| Oil flow(lpm) | 12-45 | 20-75 | 30-75 | 30-75 | 40-95 | 40-95 | 40-95 |
| Speed (rpm) | 28-95 | 32-97 | 35-98 | 35-90 | 32-77 | 32-77 | 28-57 |
| Output shaft(mm) | 65Rd | 65Rd | 65Rd | 65Rd | 65Rd | 65Rd | 65Rd |
| Weight(kg) | 38 | 49 | 50 | 50 | 52 | 87 | 88 |
Get Factory Direct Pricing Today
Excavator Auger Attachment Working Principle
The working principle of the excavator auger attachment is based on the conversion of hydraulic energy into mechanical energy. The excavator sends commands via the pilot control lever, and hydraulic oil flows through the breaker pipeline into the attachment’s hydraulic motor. The motor drives an internal planetary gearbox, converting high rotational speed into low speed and high torque.
The drill bit at the bottom of the drill rod cuts the soil under the combined action of pressure and rotational force. The helical blades act as a “conveyor belt,” transporting the excavated soil upwards along the spiral blades. If you need to change attachments during operation, using an excavator quick hitch allows you to quickly switch from the auger to a bucket or ripper without leaving the cab, enabling multi-process collaborative work.
Advantages & Benefits of YG Hydraulic Auger for Mini Excavator
- Improved work efficiency: High-efficiency drilling performance reduces unproductive work time, saving over 50% of working time compared to manual drilling or small drilling rigs, helping projects be completed ahead of schedule.
- Reduced operating costs: The integrated design eliminates the need for additional power equipment, reducing equipment investment and labor dependence, resulting in a 30% reduction in overall operating costs.
- Expanded business scope: Adaptable to various applications such as building pile driving, landscaping, and municipal pipeline laying. Further expand business capabilities with accessories such as a mini excavator ripper.
- Strong adaptability: Compatible with different tonnage excavators and excavator quick hitches, allowing for multi-scenario operation without changing the main equipment, improving equipment utilization.
- High cost-effectiveness: Direct supply from the manufacturer eliminates intermediaries, resulting in more competitive pricing, while also providing comprehensive after-sales service, allowing small and medium-sized enterprises to obtain professional-grade equipment at a low cost.
Get Factory Direct Pricing Today
Case Study: Malaysian Customer Completes Project Using YG Excavator Auger Attachment
- Client Background: A small and medium-sized construction company in Kuala Lumpur, Malaysia, specializing in residential development and supporting infrastructure construction. They are undertaking a residential project near Avalon Plot in Pahang State, with a work area primarily consisting of fill and sandy soil layers, including some weathered rock interlayers.
- Problem Faced: The project required drilling 200 residential foundation piles (400mm diameter, 3.5 meters deep) and 50 street light foundation holes. Traditional manual impact drills were inefficient and lacked drilling accuracy. Collapses were frequent during the rainy season, leading to significant time pressure.
- Results: After purchasing the YG excavator auger attachment, it was quickly adapted to a 15-ton excavator using an excavator quick hitch. The wear-resistant alloy drill bit easily handled the fill and weathered rock interlayers, allowing for fast switching between foundation pile and street light foundation drilling. A daily drilling volume of 55 holes was achieved, a 75% increase compared to traditional equipment. All drilling work was completed in just 7 days, 4 days ahead of schedule. The drilling verticality error was ≤2%, avoiding the risk of collapse during the rainy season, and saving 45% on labor costs.
- Client Testimonial: “Malaysia has complex geological conditions and frequent rainy seasons. YG’s excavator auger attachment is not only efficient and precise in drilling but can also handle various geological scenarios. Its stability during rainy season operations far surpasses traditional equipment. The flexible switching with the excavator’s quick hitch allowed us to complete the foundation construction of the residential project at a low cost. It’s a powerful tool for small and medium-sized construction companies in Malaysia.”
FAQ About the Mini Excavator Auger Attachment
Yes, as long as your excavator has auxiliary hydraulic lines (usually the breaker lines). Our excavator auger attachment can be adapted to various tonnages of mainstream brands by adjusting the mounting bracket.
For loose rock, our alloy drill bits can handle it easily. For high-hardness granite, we recommend using a mini excavator ripper to break the surface first, or contact us to customize a special rock drill bit.
Absolutely. We offer attachment package discounts. You can purchase a demolition shear for cutting rebar and concrete at the same time to get a more favorable manufacturer bundle price.
Very easy. The drill bit and drive head are connected by a pin. With an excavator quick hitch, you can easily change different specifications of drill rods on-site to suit different hole diameter requirements.
Get Factory Direct Pricing Today
Excavator Auger Attachment Manufacturer – YG Machinery Factory
With the intelligent and sophisticated development of the engineering industry, efficient and multi-functional hydraulic attachments have become the standard configuration for future construction. Our excavator auger attachment is a product that aligns with this trend. It not only solves the inefficiency of traditional drilling methods but also redefines on-site flexibility through deep integration with the excavator quick hitch.
If you want to increase the output of your post hole auger for excavator operations while also handling tasks such as foundation demolition or complex land improvement, then YG’s full range of attachments is your ideal choice. From the mini excavator ripper for tackling rocky structures to the demolition shear for handling reinforced concrete, every product we offer has undergone rigorous durability testing. YG provides not only high-quality mechanical products but also competitive solutions that can bring sustained growth to your business. Welcome to consult our latest catalog to learn how reasonable attachment selection can allow your equipment to operate effortlessly in various engineering scenarios. Click the button below to get free selection guidance and exclusive purchasing offers!
