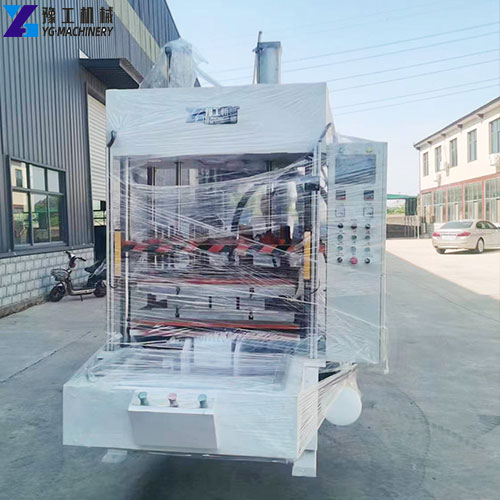

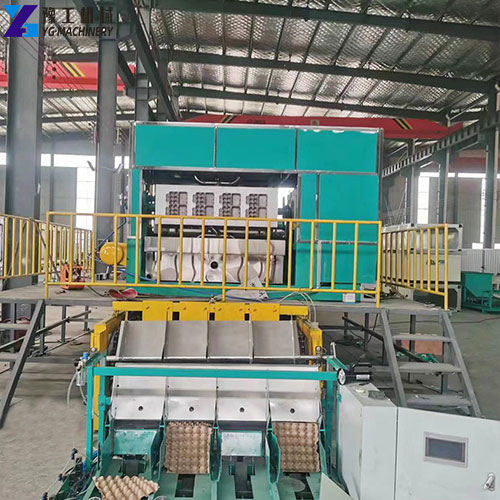

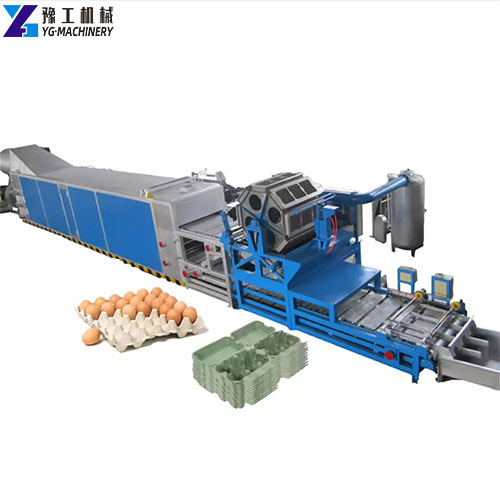

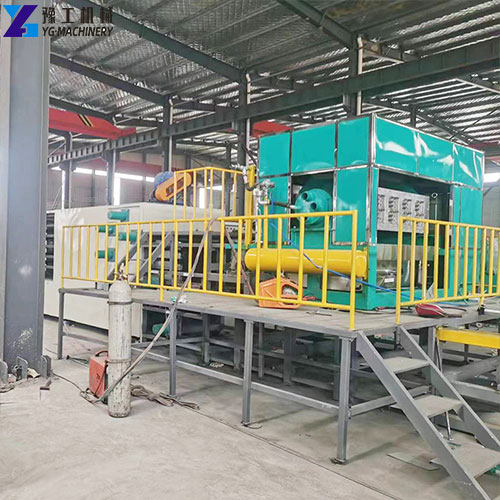

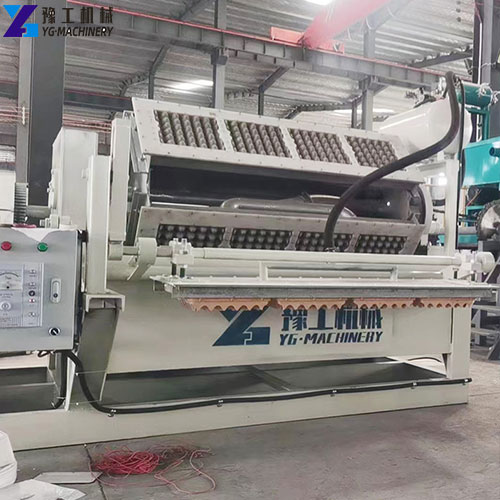

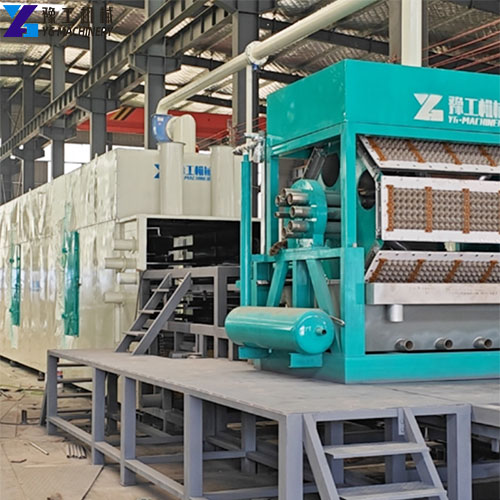

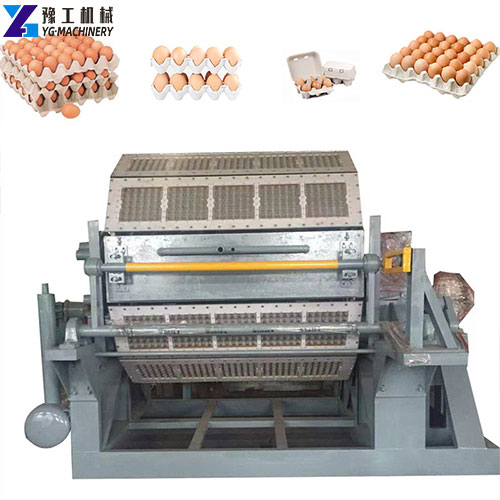

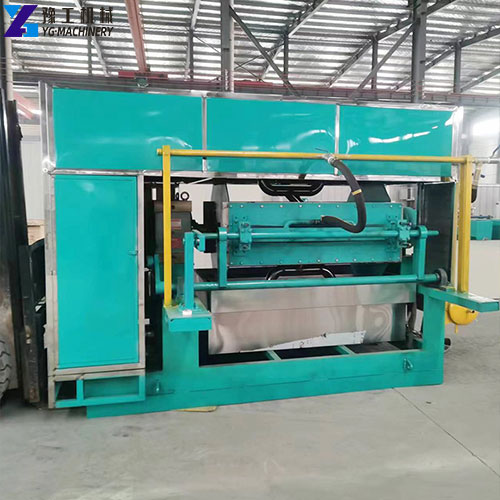

Egg tray making machines, also commonly known as egg tray forming machines or pulp egg tray machines, and often simply referred to as egg tray machines in the industry, are designed to convert recyclable resources such as waste paper and old cardboard boxes into environmentally friendly pulp. Through vacuum suction molding and drying/curing processes, they produce pulp egg trays and various packaging trays with shockproof, anti-drop, and breathable properties, used for the storage and transportation packaging of products such as poultry eggs, fruits, and electronic components. YG, a company deeply rooted in the packaging machinery manufacturing field, offers egg tray making machines based on fully automatic pulp molding technology. Their product line features a full range of paper egg tray making machines, boasting core advantages such as high efficiency, energy saving, and stable durability. By changing molds, these machines can produce egg crates (egg crate making machine), various pulp egg trays (pulp egg tray making machine), and even fruit trays (apple tray making machine), among other packaging products. Thanks to their reliable quality and flexible adaptability, YG’s egg tray making machines have been widely used in numerous packaging production scenarios worldwide, helping businesses reduce production costs, improve packaging quality, and promote green and environmentally friendly upgrades in the packaging industry. If you are also interested in investing in an egg tray making machine, please contact us now for more product information.

Get Factory Direct Pricing Today

Egg Tray Production Line Specification and Consumption

Production Line Models	Output (p/h)	Hydraulic Pulper	Egg Tray Machine	Drying Method
				Natural Drying	Brick Drying Line	Single-layer Metal Drying Line	Multilayer Metal Drying Line
YGDT3×1-1000	1000	ZDS1(1m³)	DTF3×1	√	√	√	√
YGDT4×1-1500	1500	ZDS1(1m³)	DTF4×1	√	√	√	√
YGDT3×4-2000	2000	ZDS1(1m³)	DT3×4	√	√	√	√
YGDT4×4-2500	2500	ZDS2(2m³)	DT4×4	√	√	√	√
YGDT3×8-3000	3000	ZDS2(2m³)	DT3×8		√	√	√
YGDT4×8-4000	4000	ZDS4(4m³)	DT4×8		√	√	√
YGDT5×8-5000	5000	ZDS4(4m³)	DT5×8		√	√	√
YGDT5×12-6000	6000	ZDS6(6m³)	DT5×12		√	√	√
YGDT6×8-7000	6000-7000	ZDS6(6m³)	DT6×8		√	√	√

Production Line Models	Drying Method	Raw Material(kg/h)		Power(kW/h)	Fuel Consumption
		Paper	Water		Coal(kg/h)	Gas(m³/h)	Diesel(kg/h)	LPG(kg/h)
YGDT3×1-1000	Natural drying	85	255	23.6
YGDT3×1-1000T	Brick drying line			36.1	50	22-32	18-28	18-28
YGDT3×1-1000J1	Single-layer metal drying line			36.1		22-32	18-28	18-28
YGDT3×1-1000J6	Multilayer metal drying line			36.1		22-32	18-28	18-28
YGDT4×1-1500	Natural drying	102	306	27.3
YGDT4×1-1500T	Brick drying line			38.6	60	26-36	22-32	22-32
YGDT4×1-1500J1	Single-layer metal drying line			38.6		26-36	22-32	22-32
YGDT4×1-1500J6	Multilayer metal drying line			38.6		26-36	22-32	22-32
YGDT3×4-2000	Natural drying	170	510	32.6
YGDT3×4-2000T	Brick drying line			45.3	83	37-47	30-40	30-40
YGDT3×4-2000J1	Single-layer metal drying line			45.3		37-47	30-40	30-40
YGDT3×4-2000J6	Multilayer metal drying line			45.3		37-47	30-40	30-40
YGDT4×4-2500	Natural drying	212	636	34.2
YGDT4×4-2500T	Brick drying line			46.8	104	46-56	38-48	38-48
YGDT4×4-2500J1	Single-layer metal drying line			46.8		46-56	38-48	38-48
YGDT4×4-2500J6	Multilayer metal drying line			46.8		46-56	38-48	38-48
YGDT3×8-3000T	Brick drying line	255	765	88.9	125	56-66	46-56	46-56
YGDT3×8-3000J1	Single-layer metal			88.9		56-66	46-56	46-56
YGDT3×8-3000J6	Multilayer metal drying line			88.9		56-66	46-56	46-56
YGDT4×8-4000T	Brick drying line	340	1020	91	160	67-77	55-65	55-65
YGDT4×8-4000J1	Single-layer metal drying line			91		67-77	55-65	55-65
YGDT4×8-4000J6	Multilayer metal drying line			91		67-77	55-65	55-65
YGDT5×8-5000T	Brick drying line	424	1272	100	185	82-92	67-77	67-77
YGDT5×8-5000J1	Single-layer metal drying line			100		82-92	67-77	67-77
YGDT5×8-5000J6	Multilayer metal drying line			100		82-92	67-77	67-77
YGDT5×12-6000T	Brick drying line	510	1530	105	208	92-103	77-87	77-87
YGDT5×12-6000J1	Single-layer metal drying line			105		92-103	77-87	77-87
YGDT5×12-6000J6	Multilayer metal drying line			105		92-103	77-87	77-87
Notes: 1. The above data is calculated according to the weight of each egg tray of 100g. 2. The above data is calculated as pure pulp without adding stone powder. If 20-30% stone powder is added, the actual consumption of paper is 70-80% of the above data. Contact us for more details.

Get Factory Direct Pricing Today

Features of the YG Egg Tray Making Machine

1. Fully Automatic Intelligent Production: Utilizing a PLC + touchscreen automatic control system, it achieves full automation of the entire process, including pulp preparation, pulp suction molding, transfer and demolding, drying and curing, and finished product conveying. No manual intervention is required, significantly reducing labor intensity and saving over 60% in labor costs compared to semi-automatic equipment.
2. Flexible Multi-Mold Adaptability: By changing different molding molds, it can quickly switch between producing various products such as paper egg trays, egg crates, and apple trays. Mold replacement is convenient and takes only 30 minutes, adapting to diverse packaging production needs and enabling multiple revenue streams from a single machine.
3. High-Efficiency and Energy-Saving Drying: Equipped with a hot air circulation drying system, the temperature can be precisely controlled between 150-200℃, with a thermal efficiency of over 85%. This saves 30% energy compared to traditional drying methods. Drying time can be flexibly adjusted according to product thickness, ensuring the finished product’s moisture content is controlled at 8%-12%, guaranteeing product strength.
4. Stable and High-Yield Guarantee: Using high-precision molding molds and a stable vacuum suction system, the molding pass rate reaches over 99%. Equipment capacity can be adjusted according to the model, ranging from 1000 pieces/hour to 7000 pieces/hour, meeting different production scale needs.
5. Environmentally Friendly and Energy-Saving Design: Using renewable resources such as waste paper and old cardboard boxes as raw materials, the production process has no wastewater or exhaust gas emissions, meeting green environmental protection requirements. The equipment uses energy-saving motors and high-efficiency heating elements, resulting in low energy consumption and significantly reducing operating costs over the long term.
6. Easy Maintenance Design: Key components are reasonably arranged and easy to disassemble. Wearable parts such as molds and filters are highly interchangeable and easy to replace. The equipment is equipped with a fault diagnosis system that can monitor the operating status of each component in real time and automatically alarm in case of failure, reducing maintenance difficulty.
7. Comprehensive Safety Protection: Equipped with multiple safety devices such as overload protection, leakage protection, and high-temperature warning, the equipment can automatically shut down if any abnormality occurs during operation, comprehensively ensuring the safety of operators and equipment.

Get Factory Direct Pricing Today

8 Typical Application Areas of the YG Egg Tray Making Machine

1. Poultry farming industry: Used for the storage, warehousing, and transportation of eggs at poultry farms. It allows for the self-production of suitable paper egg trays, reducing the cost of purchasing packaging materials.
2. Fresh food delivery industry: Suitable for the transportation and packaging of fresh products such as eggs and fruits. By changing molds, it can produce fruit trays (such as apple trays), ensuring the safe transportation of fresh produce.
3. Packaging processing industry: Professional packaging processing plants use it to handle orders for various types of packaging, including egg trays, egg crates, and fruit trays, meeting the customized needs of different customers.
4. Food processing industry: Used for the finished product packaging of egg products such as preserved eggs and salted eggs. Customized egg trays can enhance product recognition and brand image.
5. Agricultural e-commerce industry: Suitable for the express packaging of agricultural products such as eggs and fruits on e-commerce platforms. The shock-absorbing and breathable pulp packaging can reduce transportation damage rates.
6. Catering chain industry: Used for the procurement, storage, and distribution of eggs in chain restaurants. Standardized egg trays facilitate standardized management.
7. Electronic components industry: Used for the cushioning packaging of small electronic components. The pulp material is insulating and shock-absorbing, protecting electronic components from damage during transportation.
8. Gift packaging industry: Used for the customized packaging of high-end gifts such as eggs and fruits. Logos and patterns can be printed on the surface of the egg tray to enhance the gift’s quality.
