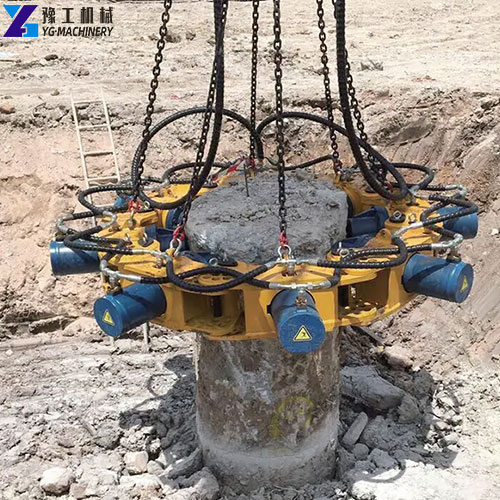

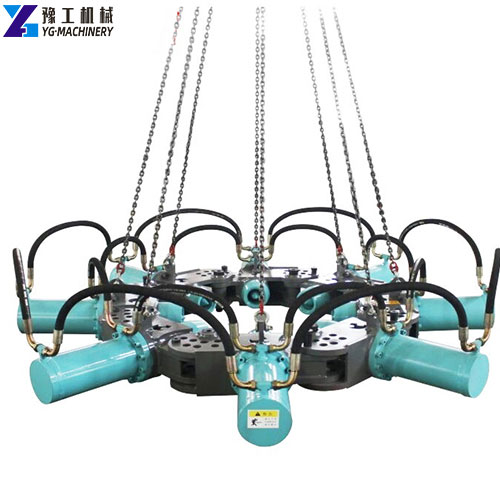

Concrete pile breakers, also commonly known as hydraulic pile breakers or simply pile breakers in the industry, are primarily used in building foundation construction to precisely break and remove excess concrete from the top of cast-in-place concrete piles. This ensures the pile top elevation meets design requirements and guarantees the quality of subsequent foundation construction. Traditional pile breaking methods rely on manual chiselling or large hydraulic hammers, which suffer from low efficiency, high pile damage rates, significant safety hazards, and severe noise pollution, making them unsuitable for the demands of modern construction projects for efficient, precise, and environmentally friendly construction. However, the YG concrete pile breaker utilises a modular hydraulic drive design, employing multiple crushing hammers that work synchronously around the pile to achieve uniform force distribution and controlled breaking. This fundamentally avoids the damage to the pile body caused by traditional breaking methods. The full range of hydraulic pile breaking machines can be flexibly adapted to various pile types, including circular and square piles, covering a diameter range of 100-1400mm, perfectly solving pile breaking challenges in Philippine construction projects. If your project requires this equipment, please contact us now for more product information.
Get Factory Direct Pricing Today
Concrete Pile Breaker Parameter
| Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Combination of the total weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Singlemodule weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Singlemodulesize | 1015*865*340mm | ||||||||
Get Factory Direct Pricing Today
Case Study: YG Pile Breaker Used in Manila, Philippines
A Residential Complex Project in Manila – Solving the Efficiency Challenges of Large-Scale Pile Foundation Construction
- Client Background: A large construction company in Manila, Philippines, is undertaking a project involving 12 high-rise residential buildings in a prime location. The project includes 360 precast concrete piles and drilled shafts, with diameters of 600mm, 800mm, and 1000mm. The project had a tight deadline and a large volume of pile-breaking work. Previously, the company used traditional manual methods with small demolition hammers, resulting in significant delays.
- Problems Faced: Firstly, extremely low efficiency: manually breaking a single 800mm pile head took 3-4 hours, meaning the 360 piles would take an estimated 120 days to complete, far exceeding the project’s 45-day deadline. Secondly, severe pile damage: traditional demolition hammers caused cracks in over 20% of the piles, requiring rework and increasing construction costs. Thirdly, significant safety hazards: working at heights and the impact of the demolition hammers caused flying debris, resulting in two minor safety incidents. Fourthly, environmental complaints: excessive construction noise led to multiple complaints from surrounding residents, and the local environmental protection department intervened with warnings.
- Solution: Based on the project’s pile types and schedule requirements, the company purchased 4units YG-800 hydraulic pile breaking machines and 2 units YG-1000 hydraulic pile breaking machines, along with four hydraulic power units, and assembled a specialised pile breaking team. After an on-site inspection, YG technicians customised specific breaking solutions for different pile diameters, replacing the corresponding number of modular breaking hammers. They also optimised the hydraulic system for the high-temperature environment in the Philippines. Furthermore, they provided three days of on-site operational training to ensure construction personnel were proficient in equipment operation and maintenance.
- Performance Results: Six concrete pile breakers operated simultaneously, reducing the time to break a single 800mm pile head to 20 minutes and a 600mm pile head to just 12 minutes. 360 piles were completed in only 38 days, achieving the project deadline 7 days ahead of schedule; the pile integrity after breaking reached a 100% compliance rate, with no cracks or damage, eliminating the need for rework and saving approximately 800,000 Philippine Pesos in repair costs; the equipment used a surrounding operation method, preventing debris from scattering, and combined with safety protection devices, resulted in zero safety accidents throughout the process; the operating noise was controlled within 80 decibels, completely resolving environmental complaints and receiving approval from the local environmental protection department.
- Customer Review: “The YG concrete pile breaker completely solved our project’s schedule and quality challenges! The efficient pile breaking efficiency allowed us to complete the pile foundation construction ahead of schedule, and the advantage of undamaged piles significantly reduced rework costs. Furthermore, the equipment operated stably in Manila’s high temperatures, and the after-sales service was responsive. It is our preferred pile breaking equipment for future projects.”
Get Factory Direct Pricing Today
Concrete Pile Breaker Application Areas
- Residential Construction: Suitable for pile foundation construction in high-rise residential complexes, commercial housing estates, and other projects, used for breaking the heads of precast piles and drilled piles to ensure the quality of foundation cap construction.
- Logistics and Warehousing: Applicable to pile breaking in port logistics parks, large warehouses, loading and unloading platforms, and other facilities, capable of handling the breaking of large-diameter piles under complex geological conditions.
- Infrastructure: Covers the construction of public facilities such as highway bridges, railway platforms, and urban rail transit, addressing the need for precise pile breaking of different specifications.
- Industrial Plants: Used in pile foundation construction for industrial plants, production workshops, heavy equipment foundations, and other projects, suitable for various pile types, including circular and square piles.
- Municipal Engineering: Includes pile head breaking for municipal projects such as urban pipe networks, sewage treatment plants, and waste treatment plants, meeting environmental construction requirements.
- Commercial Complexes: Suitable for pile breaking in large commercial buildings such as shopping malls, office buildings, and hotels, adaptable to large-scale, multi-specification pile construction scenarios.
YG Concrete Pile Breaker Price and Purchase Information
- Reference Price: Depending on specifications, the price per unit typically ranges from $3,000 to $15,000.
- Influencing Factors: The larger the pile diameter range, the more modules are required, and the price increases accordingly.
- Purchase Recommendation: YG Machinery provides specialised export support for the Philippine market. We support various payment methods and can arrange sea freight.
- Manufacturer Advantages: Direct sales from the manufacturer, eliminating intermediaries, offering a 12-month warranty, and a professional after-sales team available 24/7 to resolve issues and ensure worry-free after-sales service.
Get Factory Direct Pricing Today
Frequently Asked Questions about YG Concrete Pile Breakers
Yes, it is. The equipment features an optimised high-temperature heat dissipation design and anti-corrosion coating treatment, allowing it to operate stably in high-temperature (35-45℃) and high-salt-fog environments. Key components are sealed and protected to effectively resist corrosion, making it suitable for the Philippine climate.
It can be adapted to various pile types, including round and square piles, with diameters ranging from 100-1400mm. The common 800mm pile diameter in the Philippines is fully compatible, and adaptation can be quickly achieved by adjusting the number of modular crushing hammers.
Overall costs are reduced by more than 40%. Efficiency is increased by 30 times, shortening the construction period and reducing labour costs; damage to the pile body is avoided, eliminating rework, and simultaneously reducing safety and environmental compliance costs. The equipment investment can be recovered in a short period.
Yes. As long as the excavator’s hydraulic pump flow and pressure meet the requirements, you can install it on any brand of excavator, such as YG, Caterpillar, Komatsu, Kobelco, or Sany, using the connecting plate and quick-change coupler we provide.
For bulk purchases or large projects, we can dispatch engineers to Manila or Cebu for on-site installation and training.
